EBARA OPTIMA MS
| Quantity | Unit price |
|---|---|
| To 9 |
€367.77
€565.80
(35% saved)
Net price: €299.00
VAT: €68.77
|
| To 41 |
€339.48
€565.80
(40% saved)
Net price: €276.00
VAT: €63.48
|
| To 83 |
€311.19
€565.80
(45% saved)
Net price: €253.00
VAT: €58.19
|
| From 84 |
€294.22
€565.80
(48% saved)
Net price: €239.20
VAT: €55.02
|
Delivery free of charge! (ROI & NI)
Available in 1 day, delivery time 2-5 days
Product information "EBARA OPTIMA MS"
Stainless Steel Submersible Pump for clear and waste water with 5m cable (H07RN8-F)
230V|1Ph|50Hz| P1=430W| P2=250W| I=1.9A
discharge outlet: 1¼“(FT)
with mechanical seal (carbon/ceramic/NBR)
T(max)=50°C
with automatic level control - vertical magnetic float-switch

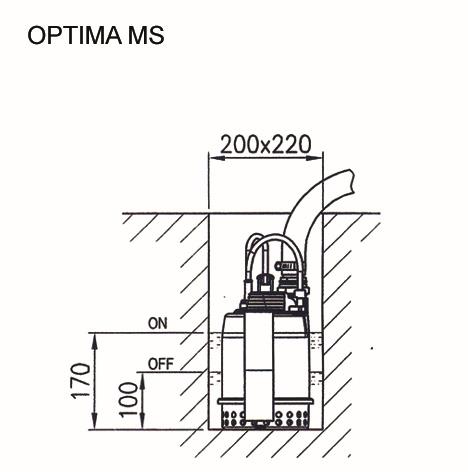

for use in narrow chambers with level bottom surface (clear water)
hydraulics made from Thermoplast with high abrasion resistance
10 mm solids passage

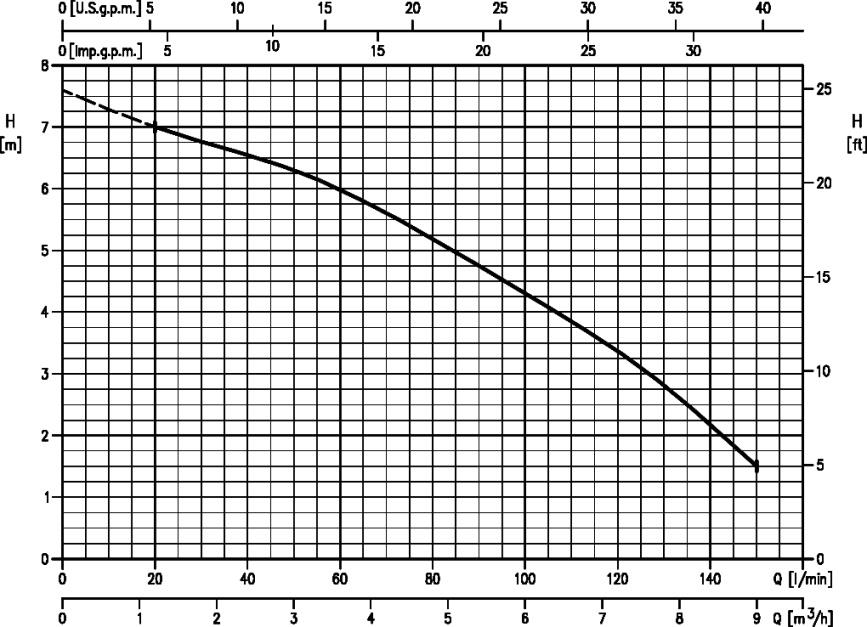

H(max)=7.6 m | Q(max)=9.0 m³/h
Submergence(max)=2m
TÜV/GS-certified | WEEE-certified | Made in EU
The EBARA OPTIMA MS is a pump with internal float switch designed for installation in narrow chambers, where a standard external float switch would physically not be able operate.
A sump pump with internal float switch should not be used to disperse sludged-based media or discoloured water with high dirt saturation. While the pump itself is possibly less affected by this type of pumping media, deposits on the internal float-body may over time impact functionality and reliable pump operation.
In cases where a sump pump with internal float switch is nevertheless required in dirt saturated water, it is recommended to perfom regular service-checks and to provide cleaning of the internal float-body.
The pump has to operate sitting on a level bottom surface. Pumps with internal float switch should not be hung into the pump chamber.
