Tank Accessories
Professional rainwater tank accessories benefit water quality within the rainwater harvesting storage tank.
The quality of harvested rainwater within the rainwater storage tank is determined by numerous factors such as the composition and material-nature of the roof as well as the functionality of the pre-tank filtration unit.
Also, the rainwater tank itself is of significance in order to maintain a high-quality standard of the harvested rainwater stored within the tank. Underground subsoil installation of the rainwater tank provides a stable temperature of approx. 8°C - 10°C throughout the year.
In conjunction with the WISY Coarse/Fine Floating Suction Filter connected to the submersible pump, the WISY Smoothing Inlet and WISY Multisiphon ensure only the best water quality is introduced to the rainwater harvesting network.

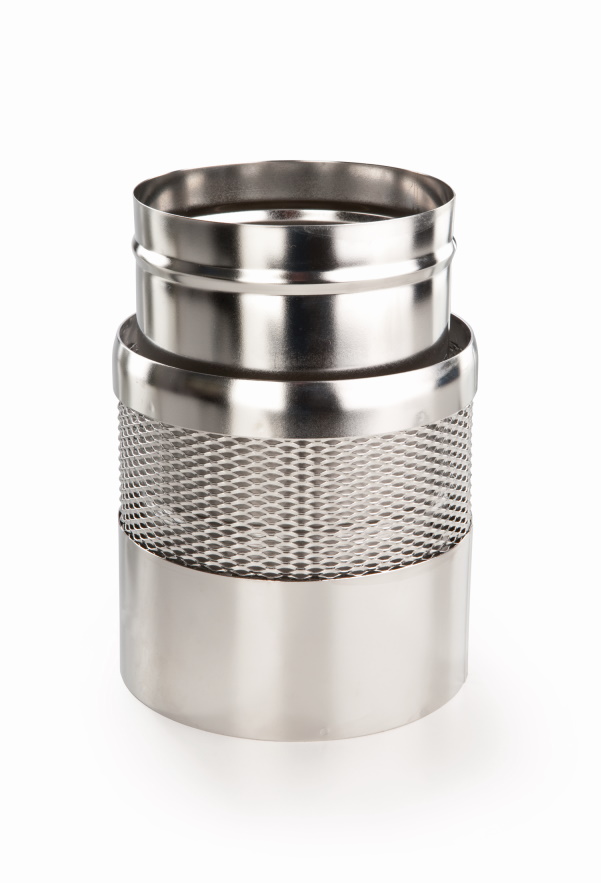

WISY Smoothing Inlet
The WISY Smoothing Inlet is manufactured in stainless-steel and is installed on the tank base at the end of the vertical inlet pipe from the rainwater filter. Preventing the resuspension of fine sediment on the base of the tank as water enters the storage chamber during precipitation, the WISY Smoothing Inlet functions as a calming inlet and distributes fresh, oxygen-enriched rainwater within the rainwater harvesting tank.
WISY Multisiphon
The WISY Multisiphon is a multi-functional overflow-device which is located within the rainwater tank and connected to the rainwater tank outlet. Due to the skimming-effect fine floating debris on the water surface is effectively removed when the tank reaches the maximum filling level of the rainwater tank. The continuous water barrier within the overflow-device seals against potential odours from the connected stormwater-drain or mixed municipal wastepipe. The WISY Multisiphon is also available with drain-backflow prevention and vermin-protection.
Multifunctional Overflow for rainwater harvesting system inlet/outlet: DN100/4" Material: impact-resitant ABS plastic Effectively removes surface debris - skimming effect 6 litre water volume Tilting resistant due to supporting device (support strut) (retaining-clamp displayed not included) The WISY Multisiphon is a rainwater tank overflow device with skimming-effect to remove fine floating debris such as pollen from the water surface.
Multifunctional Overflow for rainwater harvesting system inlet/outlet: DN 100/4" Material: impact-resitant ABS plastic Effectively removes surface debris - skimming effect 6 litre water volume Tilting resistant due to supporting device (support strut) - Integrated drain-backflow valve (including protection clamp for connection to DN 100 pipe) The WISY Multisiphon is a rainwater tank overflow device with skimming-effect to remove fine floating debris such as pollen from the water surface. Equipped with drain-backlow prevention a potential backlog from the stormwater-pipe or mixed drain is unable to contaminate the rainwater tank.
Multifunctional Overflow for rainwater harvesting system inlet/outlet: DN 100/4" Material: impact-resitant ABS plastic Effectively removes surface debris - skimming effect 6 litre water volume Tilting resistant due to supporting device (support strut) - Integrated drain-backflow valve - retaining clamp for secure connection to DN 100/4" pipe - Integrated vermin protection The WISY Multisiphon is a rainwater tank overflow device with skimming-effect to remove fine floating debris such as pollen from the water surface. Equipped with drain-backlow prevention and vermin-protection the rainwater quality within the tank is fully safeguarded.
Multifunctional Overflow for rainwater harvesting system inlet/outlet: DN 100/4" Material: impact-resitant ABS plastic Effectively removes surface debris - skimming effect 6 litre water volume Tilting resistant due to supporting device (support strut) - Integrated vermin protection (retaining-clamp displayed not included) The WISY Multisiphon is a rainwater tank overflow device with skimming-effect to remove fine floating debris such as pollen from the water surface. Equipped with vermin-protection rodent-access to the rainwater tank via the stormwater pipe or mixed drain pipe is prevented.

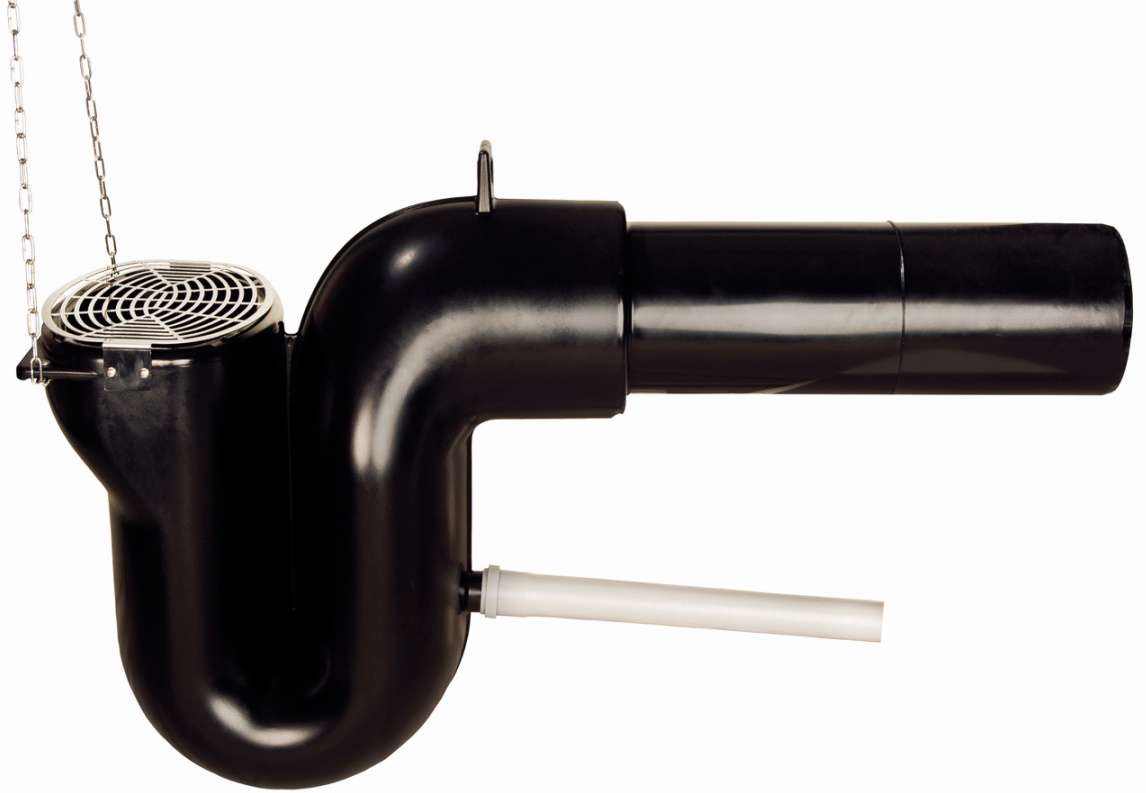

Multifunctional Overflow for Rainwater Harvesting Tank suitable in combination with WISY WFF 300 Filter inlet/outlet: DN 200/8" Material: durable PE (polyethylene) integrated Odour Trap & Vermin Protection Support Strut & Clamping Band for installation in chamber ceiling/wall Height: 1100mm / Length: 765mm The WISY Overflow Siphon DN 200 is a rainwater tank overflow device for 8" pipe connection with skimming-effect to remove fine floating debris such as pollen from the water surface. Equipped with vermin-protection rodent-access to the rainwater tank via the stormwater pipe or mixed drain pipe is prevented.
Material: Stainless Steel Rainwater inlet: calming function Suitable for pipe size: 100mm/4" The smoothing inlet reduces the velocity of incoming water into the rainwater tank.The influx of water is calmed and dispersed upwards into the storage tank, thus preventing fine sediment on the tank base from being stirred-up. Fresh oxygen-rich rainwater is distributed for best rainwater quality.
Material: Stainless Steel Rainwater inlet; calming function Suitable for pipe size: 200mm/8" The smoothing inlet reduces the velocity of incoming water into the rainwater tank.The influx of water is calmed and dispersed upwards into the storage tank, thus preventing fine sediment on the tank base from being stirred-up. Fresh oxygen-rich rainwater is distributed for best rainwater quality.
