Pump Control Panels

- to connect Manometer, Pressure Vessel & Pressure SwitchMaterial: Brass (nickel-coated)Size: 1"(MT)/1¼“(FT)Connection for pipe to Pressure-Vessel: 1¼“(FT)Connection for Pressure Switch: ¼“(MT)Connection for Manometer/Pressure Gauge: ¼“(FT)

Cable material: H05RN-F, 4 x 0.75mm² Cable length: 10m | 4x core cable (L-L1-L2-PE) with protective earth conductor (PE) 10(6) A | 250 V | IP68 Dimensions (mm): 68 x 90 x 41T(max) = 40°C | Storage(max) = 95°CFunction: emptying + fillingSwitching angle: ±45° Material: PP (non-toxic polypropylene) Certifications: VDE, CE | Made in Germany   This float switch is equipped with crossover-contacts for duplex functions: emptying + filling. Installing one float-switch with dual-functionality is required if both conditions (up/down) are of importance at the installation. In the upward position the contact between L & L1 is closed while the contact between L & L2 is opened. In the downward position the contact between L & L1 is opened but closed between L & L2.   Applications: - emptying (cores: brown + blue) level-controlled operation (ON/OFF) of a submersible pump in a sump chamber high level alarm in a sump chamber or tank pump dry-run protection; low-level device in a tank The float switch in the upward position activates the pump or high level alarm and can be used in wastewater pump stations, drainage sump chambers, sewage treatment plants and septic tanks.   Installed as a low-level device in a rainwater harvesting tank, the float switch can also provide pump dry-run protection.   Applications: - filling (cores: brown + black) level-controlled filling (ON/OFF) of tanks; header tank, intermediary buffer-tank low level alarm in a tank or reservoir low level signal of rainwater harvesting tank   The float switch in the downward position activates an external solenoid-valve or pump to supply water to the tank. The low level alarm or signal can be used to activate an emergency signal or to display a status on a control panel. It can also be used to trigger a backup supply (e.g. automatic switch-over from rainwater to well-water, if rainwater tank is empty).   Brown = L; phase/power supplyBlue = L1; to pump or alarm | (emptying)Black = L2; to pump, solenoid-valve or alarm/signal | (filling)Green/Yellow = PE (earth conductor)   SAFETY NOTICE: due to submerged operation, a float switch with earth conductor (PE) is recommended at any installation with up to 250V. All float switches supplied by GEMGATE Limited are equipped with an earth conductor!

Cable material: H05RN-F, 4 x 0.75mm² Cable length: 20m | 4x core cable (L-L1-L2-PE) with protective earth conductor (PE) 10(6) A | 250 V | IP68 Dimensions (mm): 68 x 90 x 41T(max) = 40°C | Storage(max) = 95°CFunction: emptying + fillingSwitching angle: ±45° Material: PP (non-toxic polypropylene) Certifications: VDE, CE | Made in Germany   This float switch is equipped with crossover-contacts for duplex functions: emptying + filling. Installing one float-switch with dual-functionality is required if both conditions (up/down) are of importance at the installation. In the upward position the contact between L & L1 is closed while the contact between L & L2 is opened. In the downward position the contact between L & L1 is opened but closed between L & L2.   Applications: - emptying (cores: brown + blue) level-controlled operation (ON/OFF) of a submersible pump in a sump chamber high level alarm in a sump chamber or tank pump dry-run protection; low-level device in a tank The float switch in the upward position activates the pump or high level alarm and can be used in wastewater pump stations, drainage sump chambers, sewage treatment plants and septic tanks.   Installed as a low-level device in a rainwater harvesting tank, the float switch can also provide pump dry-run protection.   Applications: - filling (cores: brown + black) level-controlled filling (ON/OFF) of tanks; header tank, intermediary buffer-tank low level alarm in a tank or reservoir low level signal of rainwater harvesting tank   The float switch in the downward position activates an external solenoid-valve or pump to supply water to the tank. The low level alarm or signal can be used to activate an emergency signal or to display a status on a control panel. It can also be used to trigger a backup supply (e.g. automatic switch-over from rainwater to well-water, if rainwater tank is empty).   Brown = L; phase/power supplyBlue = L1; to pump or alarm | (emptying)Black = L2; to pump, solenoid-valve or alarm/signal | (filling)Green/Yellow = PE (earth conductor)   SAFETY NOTICE: due to submerged operation, a float switch with earth conductor (PE) is recommended at any installation with up to 250V. All float switches supplied by GEMGATE Limited are equipped with an earth conductor!

Cable material: H05RN-F, 4 x 0.75mm² Cable length: 5m | 4x core cable (L-L1-L2-PE) with protective earth conductor (PE)10(6) A | 250 V | IP68 Dimensions (mm): 68 x 90 x 41T(max) = 40°C | Storage(max) = 95°CFunction: emptying + fillingSwitching angle: ±45° Material: PP (non-toxic polypropylene) Certifications: VDE, CE | Made in Germany   This float switch is equipped with crossover-contacts for duplex functions: emptying + filling. Installing one float-switch with dual-functionality is required if both conditions (up/down) are of importance at the installation. In the upward position the contact between L & L1 is closed while the contact between L & L2 is opened. In the downward position the contact between L & L1 is opened but closed between L & L2.   Applications: - emptying (cores: brown + blue) level-controlled operation (ON/OFF) of a submersible pump in a sump chamber high level alarm in a sump chamber or tank pump dry-run protection; low-level device in a tank The float switch in the upward position activates the pump or high level alarm and can be used in wastewater pump stations, drainage sump chambers, sewage treatment plants and septic tanks.   Installed as a low-level device in a rainwater harvesting tank, the float switch can also provide pump dry-run protection.   Applications: - filling (cores: brown + black) level-controlled filling (ON/OFF) of tanks; header tank, intermediary buffer-tank low level alarm in a tank or reservoir low level signal of rainwater harvesting tank   The float switch in the downward position activates an external solenoid-valve or pump to supply water to the tank. The low level alarm or signal can be used to activate an emergency signal or to display a status on a control panel. It can also be used to trigger a backup supply (e.g. automatic switch-over from rainwater to well-water, if rainwater tank is empty).   Brown = L; phase/power supplyBlue = L1; to pump or alarm | (emptying)Black = L2; to pump, solenoid-valve or alarm/signal | (filling)Green/Yellow = PE (earth conductor)   SAFETY NOTICE: due to submerged operation, a float switch with earth conductor (PE) is recommended at any installation with up to 250V. All float switches supplied by GEMGATE Limited are equipped with an earth conductor!

Manometer 0 - 10 barØ 63 mm, ¼" (MT) bottom connection

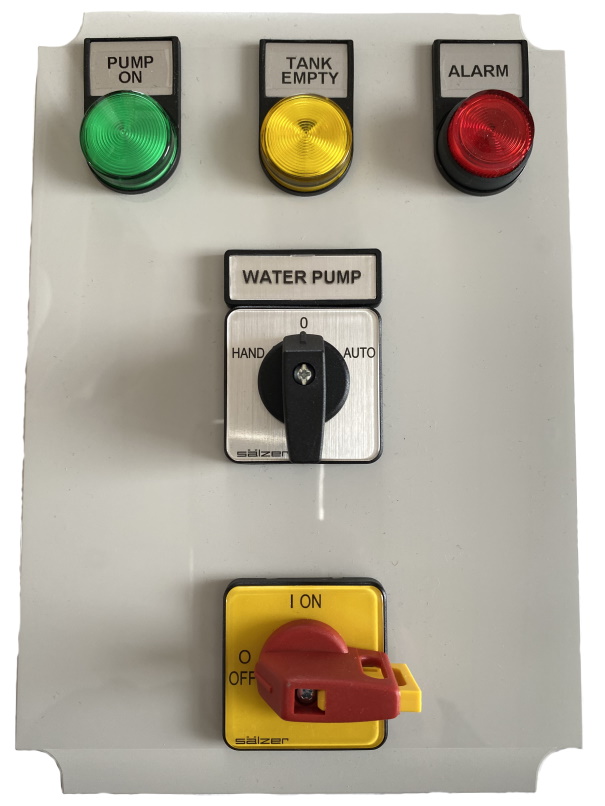

Automatic Rainwater Harvesting Control Panel Power Supply: 230V|1Ph|50Hz to operate 1x rainwater harvesting pump | duty/standby | suitable for pumps 4.0 - 6.3 A (e.g. MULTIGO M40/8) Dimensions: 175 x 250 x 150 mm - glasfibre reinforced - IP 63 Cable connections: 5 x M16 & 2 x M20 Automatic operation with external pressure-switch/float-switch (additional accessory) ON/OFF Mains-Switch (lockable) Manual-OFF-Automatic Switch (Manual pump operation possible) Motor-Protection (Overload, Short Circuit, Phase Malfunction) Dry-Run protection with external Float-Switch (4x core; additional accessory) Pump Operation indicated via LED 1 (Green) Dry-Run Detection/Tank Empty indicated via LED 2 (Yellow) Pump Alarm indicated via LED 3 (Red) Alarm-output 230V: for Light/Buzzer Alarm-output (potential-free): for BMS (max. 230V/4.0A) CE | WEEE | Made in Germany     The rainwater harvesting control panel OMNI Pluvia Eco P - 230V including motor-protection for 1x rainwater pump with an electric consumption of 4.0A to 6.3A enables automatic rainwater supply and allows monitoring of the rainwater harvesting system.   Direct Pressurised Rainwater Supply System The panel can be used for rainwater harvesting systems where the supply from the submersible or dry-standing centrifugal pressure pump is piped directly to the various points of use. In this setup a pressure switch on the pressurised rainwater pipe network is wired to the rainwater control panel contact (marked "Operation") which determines pump operation. Usually, a suitably-sized membrane accumulator pressure vessel is included in the hydraulic plumbing installation in order to reduce pump switching cycles.   A direct pressurised rainwater harvesting supply system requires the mains water top-up to feed the underground rainwater storage tank during prolonged spells of low precipitation. Therefore, when installed at a direct pressurised rainwater harvesting supply system, the yellow LED 2 (marked " Tank Empty") signals a rainwater supply disruption as the rainwater pump has been deactivated due to dry run protection.   Indirect Gravity Rainwater Harvesting System The rainwater harvesting control panel can also be installed at rainwater harvesting systems with indirect gravity feed. Here, rainwater is pumped from the underground rainwater tank to an intermediary or header tank located at the top (attic area) of the building, from where it is gravity fed to the various points of use.   Automatic pump operation is ensured by connecting a float switch (located in header tank) to the rainwater control panel. Installation of a pressure switch is also possible, as long as the rainwater input valve at the header tank remains either fully opened (pump on) or fully closed (pump off) to prevent unnecessary or prolonged pump-switching cycles. A membrane pressure vessel of min. 50 litres should be included with either option.   At an indirect gravity rainwater supply system mains water top-up is installed at the intermediary header tank. Therefore, during prolonged dry periods the yellow LED 2 (marked " Tank Empty") in this case signals the rainwater harvesting system is being supplied by mains water backup due to the low level inside the underground rainwater tank. This does not constitute a supply disruption at the rainwater harvesting system.   Alarm & Status Output to BMS Should motor-protection be activated, the potential-free alarm output to the building management system (BMS) is closed, prompting an external alarm display in addition to the red LED 3 on the panel. Alternatively, the alarm output could also be used to activate an external alarm-light/buzzer/siren (max. 230V/4.0A). The potential-free general fault alarm also allows to monitor the status output "System OK" via the building management system.

Automatic Rainwater Harvesting Control Panel Power Supply: 230V|1Ph|50Hz to operate 1x rainwater harvesting pump | duty/standby | suitable for pumps 6.3-10.0 A (e.g. MULTIGO M40/12, M40/15, M80/12, M80/15) Dimensions: 175 x 250 x 150 mm - glasfibre reinforced - IP 63 Cable connections: 5 x M16 & 2 x M20 Automatic operation with external pressure-switch/float-switch (additional accessory)ON/OFF Mains-Switch (lockable) Manual-OFF-Automatic Switch (Manual pump operation possible) Motor-Protection (Overload, Short Circuit, Phase Malfunction) Dry-Run protection with external Float-Switch (4x core; additional accessory) Pump Operation indicated via LED 1 (Green) Dry-Run Detection/Tank Empty indicated via LED 2 (Yellow) Pump Alarm indicated via LED 3 (Red) Alarm-output 230V: for Light/Buzzer Alarm-output (potential-free): for BMS (max. 230V/4.0A) CE | WEEE | Made in Germany   The rainwater harvesting control panel OMNI Pluvia Eco P - 230V including motor-protection for 1x rainwater pump with an electric consumption of 6.3A to 10.0A enables automatic rainwater supply and allows monitoring of the rainwater harvesting system.   Direct Pressurised Rainwater Supply System The panel can be used for rainwater harvesting systems where the supply from the submersible or dry-standing centrifugal pressure pump is piped directly to the various points of use. In this setup a pressure switch on the pressurised rainwater pipe network is wired to the rainwater control panel contact (marked "Operation") which determines pump operation. Usually, a suitably-sized membrane accumulator pressure vessel is included in the hydraulic plumbing installation in order to reduce pump switching cycles.   A direct pressurised rainwater harvesting supply system requires the mains water top-up to feed the underground rainwater storage tank during prolonged spells of low precipitation. Therefore, when installed at a direct pressurised rainwater harvesting supply system, the yellow LED 2 (marked " Tank Empty") signals a rainwater supply disruption as the rainwater pump has been deactivated due to dry run protection.   Indirect Gravity Rainwater Harvesting System The rainwater harvesting control panel can also be installed at rainwater harvesting systems with indirect gravity feed. Here, rainwater is pumped from the underground rainwater tank to an intermediary or header tank located at the top (attic area) of the building, from where it is gravity fed to the various points of use.   Automatic pump operation is ensured by connecting a float switch (located in header tank) to the rainwater control panel. Installation of a pressure switch is also possible, as long as the rainwater input valve at the header tank remains either fully opened (pump on) or fully closed (pump off) to prevent unnecessary or prolonged pump-switching cycles. A membrane pressure vessel of min. 50 litres should be included with either option.   At an indirect gravity rainwater supply system mains water top-up is installed at the intermediary header tank. Therefore, during prolonged dry periods the yellow LED 2 (marked " Tank Empty") in this case signals the rainwater harvesting system is being supplied by mains water backup due to the low level inside the underground rainwater tank. This does not constitute a supply disruption at the rainwater harvesting system.   Alarm & Status Output to BMS Should motor-protection be activated, the potential-free alarm output to the building management system (BMS) is closed, prompting an external alarm display in addition to the red LED 3 on the panel. Alternatively, the alarm output could also be used to activate an external alarm-light/buzzer/siren (max. 230V/4.0A). The potential-free general fault alarm also allows to monitor the status output "System OK" via the building management system.

Pressure Range 3 - 12 barFactory Setting 5.0 - 7.0 barRated Current 16 A, Rated Voltage 250 VConnection: ¼" (FT)

Pressure Range 1 - 5 barFactory Setting 1.4 - 2.8 barRated Current 16 A, Rated Voltage 250 VConnection: ¼" (FT)

100 litre horizontal accumulator pressure vessel Model: ZILMET Ultra-Pro 100L H Family: 110 ULTRA-PRO Complete with pump mounting plate Complies with European Directive 97/23/EC & DIN 4807-3 CE-Marking Diameter: 450mm Height: 480mm Material: coated steel Membrane: Butyl (replaceable) Suitable for Potable Water Volume: 100 l Primary Pressure: 1.5 bar Max. Pressure: 10 bar Connection: 1" (MT) T(max)= -10°C to +100°C

100 litre vertical accumulator pressure vessel Model: ZILMET Ultra-Pro 100L V Family: 110 ULTRA-PRO Complies with European Directive 97/23/EC & DIN 4807-3 CE-Marking Diameter: 450mm Height: 910mmMaterial: coated steel Membrane: Butyl (replaceable) Suitable for Potable Water Volume: 100 l Primary Pressure: 1.5 bar Max. Pressure: 10 bar Connection: 1" (MT) T(max)= -10°C to +100°C

50 litre horizontal accumulator pressure vessel Model: ZILMET Ultra-Pro 50L H Family: 110 ULTRA-PRO Complete with pump mounting plate Complies with European Directive 97/23/EC & DIN 4807-3 Diameter: 380mm Height: 410mm CE-Marking Material: coated steel Membrane: Butyl (replaceable) Suitable for Potable Water Volume: 50 l Primary Pressure: 1.5 bar Max. Pressure: 10 bar Connection: 1" (MT) T(max)= -10°C to +100°C

50 litre vertical accumulator pressure vessel Model: ZILMET Ultra-Pro 50L V Family: 110 ULTRA-PRO Complies with European Directive 97/23/EC & DIN 4807-3 CE-Marking Diameter: 380mm Height: 770mm Material: coated steel Membrane: Butyl (replaceable) Suitable for Potable Water Volume: 50 l Primary Pressure: 1.5 bar Max. Pressure: 10 bar Connection: 1" (MT) T(max)= -10°C to +100°C
