Accessories

- to connect Manometer, Pressure Vessel & Pressure SwitchMaterial: Brass (nickel-coated)Size: 1"(MT)/1¼“(FT)Connection for pipe to Pressure-Vessel: 1¼“(FT)Connection for Pressure Switch: ¼“(MT)Connection for Manometer/Pressure Gauge: ¼“(FT)

Cable material: H05RN-F, 4 x 0.75mm² Cable length: 10m | 4x core cable (L-L1-L2-PE) with protective earth conductor (PE) 10(6) A | 250 V | IP68 Dimensions (mm): 68 x 90 x 41T(max) = 40°C | Storage(max) = 95°CFunction: emptying + fillingSwitching angle: ±45° Material: PP (non-toxic polypropylene) Certifications: VDE, CE | Made in Germany   This float switch is equipped with crossover-contacts for duplex functions: emptying + filling. Installing one float-switch with dual-functionality is required if both conditions (up/down) are of importance at the installation. In the upward position the contact between L & L1 is closed while the contact between L & L2 is opened. In the downward position the contact between L & L1 is opened but closed between L & L2.   Applications: - emptying (cores: brown + blue) level-controlled operation (ON/OFF) of a submersible pump in a sump chamber high level alarm in a sump chamber or tank pump dry-run protection; low-level device in a tank The float switch in the upward position activates the pump or high level alarm and can be used in wastewater pump stations, drainage sump chambers, sewage treatment plants and septic tanks.   Installed as a low-level device in a rainwater harvesting tank, the float switch can also provide pump dry-run protection.   Applications: - filling (cores: brown + black) level-controlled filling (ON/OFF) of tanks; header tank, intermediary buffer-tank low level alarm in a tank or reservoir low level signal of rainwater harvesting tank   The float switch in the downward position activates an external solenoid-valve or pump to supply water to the tank. The low level alarm or signal can be used to activate an emergency signal or to display a status on a control panel. It can also be used to trigger a backup supply (e.g. automatic switch-over from rainwater to well-water, if rainwater tank is empty).   Brown = L; phase/power supplyBlue = L1; to pump or alarm | (emptying)Black = L2; to pump, solenoid-valve or alarm/signal | (filling)Green/Yellow = PE (earth conductor)   SAFETY NOTICE: due to submerged operation, a float switch with earth conductor (PE) is recommended at any installation with up to 250V. All float switches supplied by GEMGATE Limited are equipped with an earth conductor!

Cable material: H05RN-F, 4 x 0.75mm² Cable length: 20m | 4x core cable (L-L1-L2-PE) with protective earth conductor (PE) 10(6) A | 250 V | IP68 Dimensions (mm): 68 x 90 x 41T(max) = 40°C | Storage(max) = 95°CFunction: emptying + fillingSwitching angle: ±45° Material: PP (non-toxic polypropylene) Certifications: VDE, CE | Made in Germany   This float switch is equipped with crossover-contacts for duplex functions: emptying + filling. Installing one float-switch with dual-functionality is required if both conditions (up/down) are of importance at the installation. In the upward position the contact between L & L1 is closed while the contact between L & L2 is opened. In the downward position the contact between L & L1 is opened but closed between L & L2.   Applications: - emptying (cores: brown + blue) level-controlled operation (ON/OFF) of a submersible pump in a sump chamber high level alarm in a sump chamber or tank pump dry-run protection; low-level device in a tank The float switch in the upward position activates the pump or high level alarm and can be used in wastewater pump stations, drainage sump chambers, sewage treatment plants and septic tanks.   Installed as a low-level device in a rainwater harvesting tank, the float switch can also provide pump dry-run protection.   Applications: - filling (cores: brown + black) level-controlled filling (ON/OFF) of tanks; header tank, intermediary buffer-tank low level alarm in a tank or reservoir low level signal of rainwater harvesting tank   The float switch in the downward position activates an external solenoid-valve or pump to supply water to the tank. The low level alarm or signal can be used to activate an emergency signal or to display a status on a control panel. It can also be used to trigger a backup supply (e.g. automatic switch-over from rainwater to well-water, if rainwater tank is empty).   Brown = L; phase/power supplyBlue = L1; to pump or alarm | (emptying)Black = L2; to pump, solenoid-valve or alarm/signal | (filling)Green/Yellow = PE (earth conductor)   SAFETY NOTICE: due to submerged operation, a float switch with earth conductor (PE) is recommended at any installation with up to 250V. All float switches supplied by GEMGATE Limited are equipped with an earth conductor!

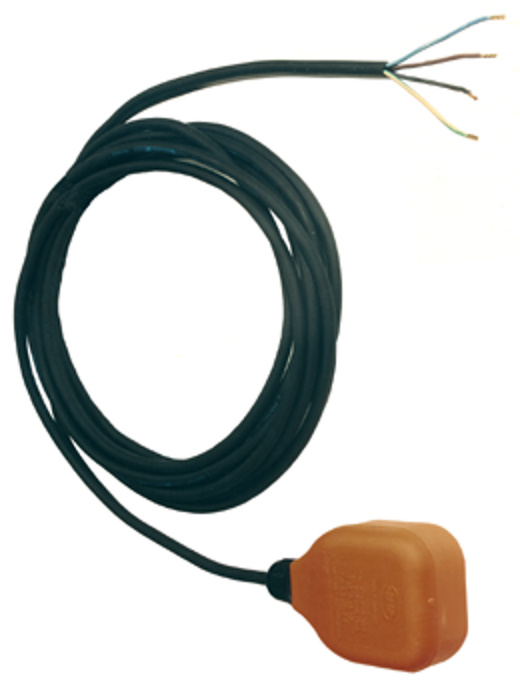

Cable material: H05RN-F, 4 x 0.75mm² Cable length: 5m | 4x core cable (L-L1-L2-PE) with protective earth conductor (PE)10(6) A | 250 V | IP68 Dimensions (mm): 68 x 90 x 41T(max) = 40°C | Storage(max) = 95°CFunction: emptying + fillingSwitching angle: ±45° Material: PP (non-toxic polypropylene) Certifications: VDE, CE | Made in Germany   This float switch is equipped with crossover-contacts for duplex functions: emptying + filling. Installing one float-switch with dual-functionality is required if both conditions (up/down) are of importance at the installation. In the upward position the contact between L & L1 is closed while the contact between L & L2 is opened. In the downward position the contact between L & L1 is opened but closed between L & L2.   Applications: - emptying (cores: brown + blue) level-controlled operation (ON/OFF) of a submersible pump in a sump chamber high level alarm in a sump chamber or tank pump dry-run protection; low-level device in a tank The float switch in the upward position activates the pump or high level alarm and can be used in wastewater pump stations, drainage sump chambers, sewage treatment plants and septic tanks.   Installed as a low-level device in a rainwater harvesting tank, the float switch can also provide pump dry-run protection.   Applications: - filling (cores: brown + black) level-controlled filling (ON/OFF) of tanks; header tank, intermediary buffer-tank low level alarm in a tank or reservoir low level signal of rainwater harvesting tank   The float switch in the downward position activates an external solenoid-valve or pump to supply water to the tank. The low level alarm or signal can be used to activate an emergency signal or to display a status on a control panel. It can also be used to trigger a backup supply (e.g. automatic switch-over from rainwater to well-water, if rainwater tank is empty).   Brown = L; phase/power supplyBlue = L1; to pump or alarm | (emptying)Black = L2; to pump, solenoid-valve or alarm/signal | (filling)Green/Yellow = PE (earth conductor)   SAFETY NOTICE: due to submerged operation, a float switch with earth conductor (PE) is recommended at any installation with up to 250V. All float switches supplied by GEMGATE Limited are equipped with an earth conductor!

Manometer 0 - 10 barØ 63 mm, ¼" (MT) bottom connection

Pressure Range 3 - 12 barFactory Setting 5.0 - 7.0 barRated Current 16 A, Rated Voltage 250 VConnection: ¼" (FT)

Pressure Range 1 - 5 barFactory Setting 1.4 - 2.8 barRated Current 16 A, Rated Voltage 250 VConnection: ¼" (FT)

100 litre horizontal accumulator pressure vessel Model: ZILMET Ultra-Pro 100L H Family: 110 ULTRA-PRO Complete with pump mounting plate Complies with European Directive 97/23/EC & DIN 4807-3 CE-Marking Diameter: 450mm Height: 480mm Material: coated steel Membrane: Butyl (replaceable) Suitable for Potable Water Volume: 100 l Primary Pressure: 1.5 bar Max. Pressure: 10 bar Connection: 1" (MT) T(max)= -10°C to +100°C

100 litre vertical accumulator pressure vessel Model: ZILMET Ultra-Pro 100L V Family: 110 ULTRA-PRO Complies with European Directive 97/23/EC & DIN 4807-3 CE-Marking Diameter: 450mm Height: 910mmMaterial: coated steel Membrane: Butyl (replaceable) Suitable for Potable Water Volume: 100 l Primary Pressure: 1.5 bar Max. Pressure: 10 bar Connection: 1" (MT) T(max)= -10°C to +100°C

50 litre horizontal accumulator pressure vessel Model: ZILMET Ultra-Pro 50L H Family: 110 ULTRA-PRO Complete with pump mounting plate Complies with European Directive 97/23/EC & DIN 4807-3 Diameter: 380mm Height: 410mm CE-Marking Material: coated steel Membrane: Butyl (replaceable) Suitable for Potable Water Volume: 50 l Primary Pressure: 1.5 bar Max. Pressure: 10 bar Connection: 1" (MT) T(max)= -10°C to +100°C

50 litre vertical accumulator pressure vessel Model: ZILMET Ultra-Pro 50L V Family: 110 ULTRA-PRO Complies with European Directive 97/23/EC & DIN 4807-3 CE-Marking Diameter: 380mm Height: 770mm Material: coated steel Membrane: Butyl (replaceable) Suitable for Potable Water Volume: 50 l Primary Pressure: 1.5 bar Max. Pressure: 10 bar Connection: 1" (MT) T(max)= -10°C to +100°C
