Wastewater

Stainless Steel Submersible Pump for clear and waste water with 10m cable 400V|3Ph|50Hz| P1= 1.00kW| P2= 0.55kW| I=2.0A discharge outlet: 1½“ (FT) double mechanical seal (motor-side: carbon/ceramic/NBR | pump-side: SIC/SIC/NBR) without automatic level control 10 mm solids passage T(max)=50°C H(max)=13.1 m | Q(max)=15.6 m³/h Submergence(max)=10m TÜV/GS-certified | WEEE-certified | CE | Made in EU

Stainless Steel Submersible Pump for clear and waste water with 10m cable 230V|1Ph|50Hz| P1= 0.98kW| P2= 0.55kW| I=4.4A discharge outlet: 1½“ (FT) double mechanical seal (motor-side: carbon/ceramic/NBR | pump-side: SIC/SIC/NBR) without automatic level control 10 mm solids passage T(max)=50°C H(max)=13.1 m | Q(max)=15.6 m³/h TÜV/GS-certified | WEEE-certified | CE | Made in EU

Stainless Steel Submersible Pump for clear and waste water with 10m cable 230V|1Ph|50Hz| P1= 0.98kW| P2= 0.55kW| I=4.4A discharge outlet: 1½“ (FT) with automatic level control 10 mm solids passage T(max)=50°C H(max)=13.1 m | Q(max)=15.6 m³/h Submergence(max)=10m TÜV/GS-certified | WEEE-certified | CE | Made in EU   The EBARA BEST 2 MA is a fully stainless-steel submersible pump with float-switch for automatic level control operation. It is used in sump pump chambers for applications such as general drainage as well as wastewater & sewage water handling with a solids passage of up to 10mm.   With a maximum volume capacity of 260 litres per minute and a maximum pumping head of 13.1 metres, the EBARA BEST 2 MA is used in commercial and agricultural installations, where higher pumping volume is required, and in private domestic installations with prolonged pumping distances.   Applications include draining wells, garages, cellars or places subject to flooding. Wastewater Treatment System & Septic Tank Pump The EBARA BEST 2 MA is used to pump treated effluent in domestic treatment sytems and septic tanks where the subsoil polishing filter area or percolation area are not located in close proximity to the final effluent chamber. The higher performance and pumping height of the pump compensates the pressure loss involved with longer pipe distances and ensures the final effluent chamber is sufficiently emptied during pumping intervals.   Regular maintenance of your wastewater treatment system or septic tank & good practice ensure sufficient treatment levels in the final effluent chamber. This is also important in order to achieve a satisfactory lifespan of the submersible pump.   A general guideline to wastewater treatment systems & servicing, including replacement of the submersible effluent pump, is available for download in pdf-Format: GUIDE – Wastewater Treatment Systems

Stainless Steel Submersible Pump for clear and waste water with 10m cable 400V|3Ph|50Hz| P1= 1.20kW| P2= 0.75kW| I=2.4A discharge outlet: 1½“ (FT) double mechanical seal (motor-side: carbon/ceramic/NBR | pump-side: SIC/SIC/NBR) without automatic level control 10 mm solids passage T(max)=50°C H(max)=14.5 m | Q(max)=16.8 m³/h Submergence(max)=10m TÜV/GS-certified | WEEE-certified | CE | Made in EU

Stainless Steel Submersible Pump for clear and waste water with 10m cable 230V|1Ph|50Hz| P1= 1.30kW| P2= 0.75kW| I=5.6A discharge outlet: 1½“ (FT) double mechanical seal (motor-side: carbon/ceramic/NBR | pump-side: SIC/SIC/NBR) without automatic level control 10 mm solids passage T(max)=50°C H(max)=14.5 m | Q(max)=16.8 m³/h Submergence(max)=10m TÜV/GS-certified | WEEE-certified | CE | Made in EU

Stainless Steel Submersible Pump for clear and waste water with 10m cable 230V|1Ph|50Hz| P1= 1.30kW| P2= 0.75kW| I=5.6A discharge outlet: 1½“ (FT) double mechanical seal (motor-side: carbon/ceramic/NBR | pump-side: SIC/SIC/NBR) with automatic level control 10 mm solids passage T(max)=50°C H(max)=14.5 m | Q(max)=16.8 m³/h Submergence(max)=10m TÜV/GS-certified | WEEE-certified | CE | Made in EU

Stainless Steel Submersible Pump for clear and waste water with 10m cable 400V|3Ph|50Hz| P1= 1.65kW| P2= 1.10kW| I=3.0A discharge outlet: 1½“ (FT) double mechanical seal (motor-side: carbon/ceramic/NBR | pump-side: SIC/SIC/NBR) without automatic level control 10 mm solids passage T(max)=50°C H(max)=18.0 m | Q(max)=19.8 m³/h Submergence(max)=10m TÜV/GS-certified | WEEE-certified | CE | Made in EU

Stainless Steel Submersible Pump for clear and waste water with 10m cable 230V|1Ph|50Hz| P1= 1.65kW| P2= 1.10kW| I=7.3A discharge outlet: 1½“ (FT) double mechanical seal (motor-side: carbon/ceramic/NBR | pump-side: SIC/SIC/NBR) without automatic level control 10 mm solids passage T(max)=50°C H(max)=18.1 m | Q(max)=19.8 m³/h Submergence(max)=10m TÜV/GS-certified | WEEE-certified | CE | Made in EU

Stainless Steel Submersible Pump for clear and waste water with 10m cable 230V|1Ph|50Hz| P1= 1.65kW| P2= 1.10kW| I=7.3A discharge outlet: 1½“ (FT) double mechanical seal (motor-side: carbon/ceramic/NBR | pump-side: SIC/SIC/NBR) with automatic level control 10 mm solids passage T(max)=50°C H(max)=18.0 m | Q(max)=19.8 m³/h Submergence(max)=10m TÜV/GS-certified | WEEE-certified | CE | Made in EU

Stainless Steel Submersible Pump for clear and waste water with 10m cable 400V|3Ph|50Hz| P1= 1.70kW| P2= 1.50kW| I=3.3A discharge outlet: 1½“ (FT) double mechanical seal (motor-side: carbon/ceramic/NBR | pump-side: SIC/SIC/NBR) without automatic level control 10 mm solids passage T(max)=50°C H(max)=19.0 m | Q(max)=21.6 m³/h Submergence(max)=10m TÜV/GS-certified | WEEE-certified | CE | Made in EU

Stainless Steel Submersible Pump for clear water with 10m cable (H07RN8-F) 400V|3Ph|50Hz| P1= 0.5kW| P2= 0.25kW| I=0.8A with mechanical seal (carbon/ceramic/NBR) T(max)=50°C without automatic level control discharge outlet: 1¼“ (FT) | separate non-return flap included hydraulics in stainless-steel 10 mm solids passage H(max)=9.0 m | Q(max)=10.2 m³/h TÜV/GS-certified | WEEE-certified | CE | Made in EU

Stainless Steel Submersible Pump for clear water with 10m cable (H07RN8-F) 230V|1Ph|50Hz| P1= 0.5kW| P2= 0.25kW| I=2.3A with mechanical seal (carbon/ceramic/NBR) T(max)=50°C without automatic level control discharge outlet: 1¼“ (FT) | separate non-return flap included hydraulics in stainless-steel 10 mm solids passage H(max)=9.0 m | Q(max)=10.2 m³/h Submergence(max)=5 m TÜV/GS-certified | WEEE-certified | CE | Made in EU

Stainless Steel Submersible Pump for clear water with 10m cable (H07RN8-F) 230V|1Ph|50Hz| P1= 0.5kW| P2= 0.25kW| I=2.3A with mechanical seal (carbon/ceramic/NBR) T(max)=50°C with automatic level control discharge outlet: 1¼“ (FT) | separate non-return flap included hydraulics in stainless-steel 10 mm solids passage H(max)=9.0 m | Q(max)=10.2 m³/h Submergence(max)=5 m TÜV/GS-certified | WEEE-certified | CE | Made in EU

Stainless Steel Submersible Pump for clear and waste water with 10m cable (H07RN8-F) 230V|1Ph|50Hz| P1=430W| P2=250W| I=1.9A discharge outlet: 1¼“(FT) | separate non-return flap included with mechanical seal (carbon/ceramic/NBR) T(max)=50°C without automatic level control hydraulics made from Thermoplast with high abrasion resistance 10 mm solids passage H(max)=7.6 m | Q(max)=9.0 m³/h Submergence(max)=5m TÜV/GS-certified | WEEE-certified | | CE | Made in EU

Stainless Steel Submersible Pump for clear and waste water with 10m cable (H07RN8-F) 230V|1Ph|50Hz| P1=430W| P2=250W| I=1.9A discharge outlet: 1¼“(FT) | separate non-return flap included with mechanical seal (carbon/ceramic/NBR) T(max)=50°C with automatic level control | Float-Switchhydraulics made from Thermoplast with high abrasion resistance 10 mm solids passage H(max)=7.6 m | Q(max)=9.0 m³/h Submergence(max)=5m TÜV/GS-certified | CE-certified | UKCA-certified | WEEE-certified | Made in EU    The submersible sump pump EBARA OPTIMA MA with stainless steel pump casing is equipped with a mechanical seal within an interpoised oil-chamber for a long service lifespan. The maximum volume capacity of the pump is 150 litres per minute or 9,000 litres per hour.   The vertical discharge (1¼“ - female threading) at the top of the pump with jacket-cooling also enables safe operation even when the pump is only partially submerged (e.g. draining of flooded basements).   The EBARA OPTIMA MA is fitted with a float switch for automatic level-controlled operation within a pump chamber, sump chamber or collection tank.   Typical areas of applications include: discharge of wastewater and dirty water with solids of up to 10mm wastewater treatment systems & septic tanks; discharge of treated effluent to the percolation area draining of flooded basements and garages; optional EBARA Low Suction Kit available (additional accessory) emptying of pump and sump chambers emptying of drainage chambers and surface water collection chambers discharge of greywater chambers; from washing-machines, dishwashers, showers and washhand-basins located below the sewerage level   The submersible pump EBARA OPTIMA MA is TÜV/GS-certified (German technical inspection authority) and is equipped with a 10m cable and has replaced the previous pump model EBARA BEST ZERO MA.

Stainless Steel Submersible Pump for clear and waste water with 10m cable 400V|3Ph|50Hz | P1= 1.2kW| P2= 0.75kW| I=2.6A discharge outlet: 1½“ (FT), T(max) = 50°C double mechanical seal (motor-side: carbon/ceramic/NBR | pump-side: SIC/SIC/NBR) without automatic level control 35 mm solids passage H(max)=10.5 m | Q(max)=18.0 m³/h Submergence(max)=7 m WEEE-certified | CE | Made in EU

Stainless Steel Submersible Pump for clear and waste water with 10m cable 230V|1Ph|50Hz| P1= 1.2kW| P2= 0.75kW| I=5.7A discharge outlet: 1½“ (FT), T(max) = 50°C double mechanical seal (motor-side: carbon/ceramic/NBR | pump-side: SIC/SIC/NBR) without automatic level control 35 mm solids passage H(max)=10.5 m | Q(max)=18.0 m³/h Submergence(max)=7 m WEEE-certified | CE | Made in EU

Stainless Steel Submersible Pump for clear and waste water with 10m cable 230V|1Ph|50Hz| P1= 1.20kW| P2= 0.75kW| I=5.7A discharge outlet: 1½“ (FT), T(max) = 50°C double mechanical seal (motor-side: carbon/ceramic/NBR | pump-side: SIC/SIC/NBR) with automatic level control 35 mm solids passage H(max)=10.5 m | Q(max)=18.0 m³/h Submergence(max)=7 m WEEE-certified | CE | Made in EU   The EBARA RIGHT 100 MA is a complete stainless-steel submersible pump with float-switch for automatic level control operation. It is used in sump pump chambers for general drainage, wastewater & sewage water handling with a solids passage of up to 35mm. Motor-cooling is provided by the surrounding medium within the sump chamber. It is therefore recommended to operate the EBARA RIGHT 100 MA fully submerged. Operating the pump only partially submerged is fine for brief periods as the float-switch drops down to the switch OFF level. Prolonged operation only partially submerged should however be avoided.   Applications include draining wells, garages, cellars or places subject to flooding.   The EBARA RIGHT 100 MA is fitted with a float switch for automatic level-controlled operation within a pump chamber, sump chamber or collection tank.   Typical areas of applications include: discharge of wastewater and dirty water with solids of up to 35mm emptying of pump and sump chambers emptying of drainage chambers and surface water collection chambers discharge of greywater chambers; from washing-machines, dishwashers, showers and washhand-basins located below the sewerage level Wastewater Treatment System Pump The EBARA RIGHT 100 MA is also suitable as a submersible pump in domestic wastewater treatment systems and septic tanks to discharge treated effluent to the subsoil polishing filter or percolation area.   The EBARA RIGHT 100 MA submersible pump is suitable for several domestic and commercial wastewater treatment systems in Ireland where higher pumping volume is required. Some treatment systems are listed below: (when replacing a pump, please check the technical details on the label of the existing pump and compare with the above. Assistance is available.) Oakstown BAF Domestic WWTS Oakstown BAF Commercial WWTS Puraflo | Bord Na Mona Tricel Novo (selected systems only) At installations where the percolation area is not located in close proximity to the wastewater treatment system or septic tank a larger submersible pump may be required. A general guideline to wastewater treatment systems & servicing, including replacement of the submersible effluent pump, is available for download in pdf-Format: GUIDE – Wastewater Treatment Systems

Stainless Steel Submersible Pump for clear and waste water with 10m cable 400V|3Ph|50Hz| P1= 0.95kW| P2= 0.55kW| I=2.1A discharge outlet: 1½“ (FT), T(max) = 50°C double mechanical seal (motor-side: carbon/ceramic/NBR | pump-side: SIC/SIC/NBR) without automatic level control 35 mm solids passage H(max)=8.8 m | Q(max)=14.4 m³/h Submergence(max)=7 m WEEE-certified | CE | Made in EU

Stainless Steel Submersible Pump for clear and waste water with 10m cable 230V|1Ph|50Hz| P1= 1.00kW| P2= 0.55kW| I=4.8A discharge outlet: 1½“ (FT), T(max) = 50°C double mechanical seal (motor-side: carbon/ceramic/NBR | pump-side: SIC/SIC/NBR) without automatic level control 35 mm solids passage H(max)=8.8 m | Q(max)=14.4 m³/h Submergence(max)=7 m WEEE-certified | CE | Made in EU

Stainless Steel Submersible Pump for clear and waste water with 10m cable 230V|1Ph|50Hz| P1= 1.00kW| P2= 0.55kW| I=4.8A discharge outlet: 1½“ (FT), T(max) = 50°C double mechanical seal (motor-side: carbon/ceramic/NBR | pump-side: SIC/SIC/NBR) with automatic level control 35 mm solids passage H(max)=8.8 m | Q(max)=14.4 m³/h Submergence(max)=7 m WEEE-certified | CE | Made in EU   The EBARA RIGHT 75 MA is a complete stainless-steel submersible pump with float-switch for automatic level control operation. It is used in sump pump chambers for general drainage, wastewater & sewage water handling with a solids passage of up to 35mm. Motor-cooling is provided by the surrounding medium within the sump chamber. It is therefore recommended to operate the EBARA RIGHT 75 MA fully submerged. Operating the pump only partially submerged is fine for brief periods as the float-switch drops down to the switch OFF level. Prolonged operation only partially submerged should however be avoided.   Applications include draining wells, garages, cellars or places subject to flooding.   The EBARA RIGHT 75 MA is fitted with a float switch for automatic level-controlled operation within a pump chamber, sump chamber or collection tank.   Typical areas of applications include: discharge of wastewater and dirty water with solids of up to 35mm emptying of pump and sump chambers emptying of drainage chambers and surface water collection chambers discharge of greywater chambers; from washing-machines, dishwashers, showers and washhand-basins located below the sewerage level Wastewater Treatment System Pump The EBARA RIGHT 75 MA is also suitable as a submersible pump in domestic wastewater treatment systems and septic tanks to discharge treated effluent to the subsoil polishing filter or percolation area.   The EBARA RIGHT 75 MA submersible pump is suitable for several domestic and commercial wastewater treatment systems in Ireland where higher pumping volume is required. Some treatment systems are listed below: (when replacing a pump, please check the technical details on the label of the existing pump and compare with the above. Assistance is available.) Oakstown BAF Domestic WWTS Oakstown BAF Commercial WWTS Puraflo | Bord Na Mona Tricel Novo (selected systems only) At installations where the percolation area is not located in close proximity to the wastewater treatment system or septic tank a larger submersible pump may be required. A general guideline to wastewater treatment systems & servicing, including replacement of the submersible effluent pump, is available for download in pdf-Format: GUIDE – Wastewater Treatment Systems

Stainless Steel Submersible Pump for clear and waste water with 10m cable (H05RN-F)230V|1Ph|50Hz| P1=430W| P2=250W| I=1.9Adischarge outlet: 1¼“(FT) | separate non-return flap includedwith mechanical seal (carbon/ceramic/NBR) T(max)=50°Cwith automatic level controlhydraulics made from Thermoplast with high abrasion resistance 10 mm solids passageH(max)=7.6 m | Q(max)=9.0 m³/hSubmergence(max)=5mCE-certified | UKCA-certified | WEEE-certified | Made in EU   The GEMAT 430 NS is a stainless-steel submersible pump with float-switch for automatic level control operation. It is used in sump pump chambers for general drainage, wastewater & sewage water handling with a solids passage of up to 10mm.   Applications include draining wells, garages, cellars or places subject to flooding. Wastewater Treatment System & Septic Tank Pump Frequently, the GEMAT 430 NS is installed as a submersible pump in domestic wastewater treatment systems and septic tanks to discharge treated effluent to the subsoil polishing filter or percolation area.   The GEMAT 430 NS submersible pump is suitable for most domestic wastewater treatment systems in Ireland including the below: (when replacing a pump, please check the technical details on the label of the existing pump and compare with the above. Assistance is available.) Bio-Crete Biodisc Biogreen (6 & 8 PE) Biokast Biotech Biocycle Chieftain (8 & 12 PE) Enviropak Klargester Oakstown BAF Domestic WWTS (6 & 8 PE) Platinum | Bord Na Mona Puraflo | Bord Na Mona Septech 2000 Streamline BAF Titan / Envirocare Tricel (selected systems only) At installations where the percolation area is not located in close proximity to the wastewater treatment system or septic tank, a larger submersible pump may be required.   A wastewater treatment system as well as a septic tank requires a functional & reliable effluent pump in the final chamber in order to continue to operate. Replacing the septic tank pump is therefore usually an urgent matter, as system backlog and potential overflowing with contamination to the surrounding ground area should be avoided.   Regular maintenance of your wastewater treatment system or septic tank & good practice ensure sufficient treatment levels in the final effluent chamber. This is also important in order to achieve a satisfactory lifespan of the submersible pump.   A general guideline to wastewater treatment systems & servicing, including replacement of the submersible effluent pump, is available for download in pdf-Format: GUIDE – Wastewater Treatment Systems Non-return flap valve - included as standard The non-return flap valve can be easily included to the pump discharge when fitting the pipe coupler. The non-return flap valve prevents water within the pipe from re-entering the pump and sump chamber after the pumping cycle has ended.  This can significantly reduce the number of pump starts, especially in smaller sump chambers with less volume.The non-return flap valve should not be included, if the discharge pipe is located in an environment subject to frost or sub-zero freezing temperatures. Quality Components Submersible pumps used numerously on a daily basis require quality components to ensure realiability and a long pump lifespan.  THE GEMAT 430 NS has robust stainless steel components, a mechanical seal (Ceramic/Carbon/NBR) as well as a glassfibre-reinforced impeller, diffuser & motor-cover in technopolymer.   The GEMAT 430 NS submersible sump pump is suitable for continuous duty operation.

Submersible drainage pump for clear, waste and effluent water 1Ph|230V|50Hz | P1= 440W | P2=250W | I=2.0A with 10m power cable and fused 3-Pin Plug (type G; UK) | cable: H05RN-F 3G 0.75mm² Pump Body: polypropylene (PP) discharge outlet G 1“ (MT) with automatic level control (float-switch|cable:H07RN-F 3G 1.0mm²) Impeller: technopolymer (glasfibre-reinforced) 10 mm solids passage T(max) = 35°C H(max)=8.5 m | Q(max)=9.0 m³/h Submergence(max)=5m WEEE-certified | Made in EU   Pump model phased-out | only limited stock remaining | full 24-months warranty   The GEMAT 500 NS is a submersible pump in high-tech and durable polypropylene with float-switch for automatic level control operation with a volume capacity of up to 150 litres per minute.   The pump is used in sump chambers for general drainage, wastewater & sewage water handling with a solids passage of up to 10mm. Applications include draining wells, garages, cellars or places subject to flooding.   The GEMAT 500 NS submersible pump can also be installed in domestic wastewater treatment systems and septic tanks to discharge treated effluent to the subsoil polishing filter or percolation area.

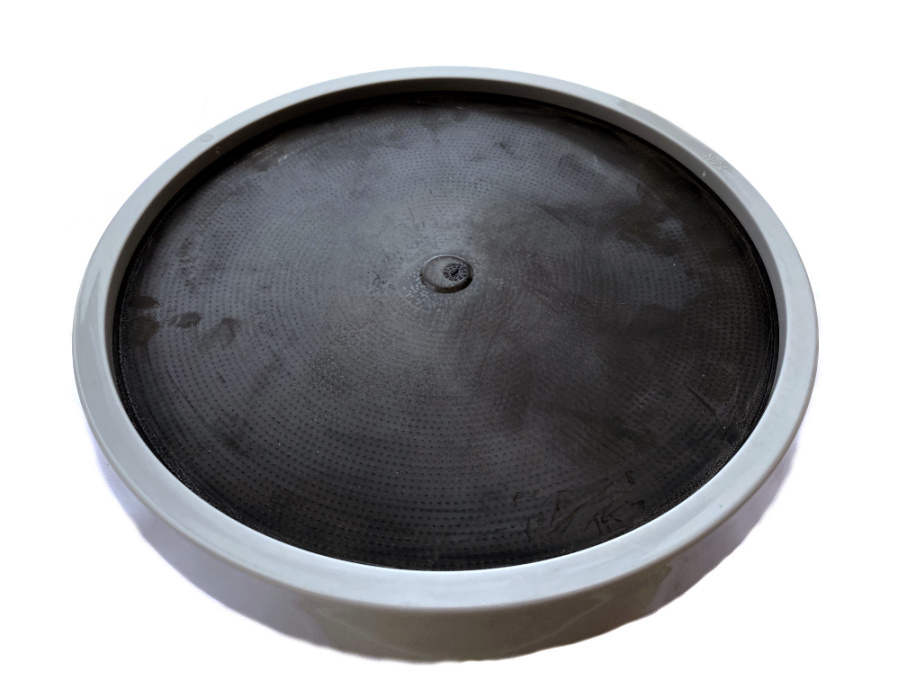

Aeration Disc DiffuserMembrane Material: EPDM Material Plate & Securing Ring: PP Upper Diameter: 325 mm (300mm aeration) Lower Diameter: 330 mm Perforation: 1.0 mm | fully opened: ~ 200 mbarConnection: ¾“ MT Q(min): 2 Nm³/h | (Q(max): 12 Nm³/h Made in Germany   Fine bubble aeration with high oxygen-transfer is essential to obtain treatment level targets. It is recommended to evenly distribute GEMDISC disc diffusers within the aeration chamber (bio-reactor) for well-balanced fine bubble aeration.   The 12" disc diffuser with EPDM membrane ensures long-term reliable operation due to the valve-effect of the perforation, enabling both continuous as well as energy-efficient intermittent aeration intervals.   For effective operation and membrane longevity, air-input volume and pressure introduced into the disc diffuser should be (a) as high as is required for a good air bubble picture and (b) as low as possible.   The perforation of the membrane begins to open at approximately 40 mbar and is fully opened at ~ 200 mbar. After initial start-up (commissioning), it may be required to briefly operate at a moderately higher pressure level in order to allow the perforation over the full cross-section of the disc diffuser to open entirely.    The flexible and elastic membrane in EPDM is suitable for operation at wastewater treatment plants with predominantly domestic sewage combined with a light to moderate influx of industrial wastewater.   Areas of Application: municipal sewage & wastewater treatment plants decentralised remote sewage treatment systems domestic wastewater treatment systems aeration on landfill sites
