EBARA OPTIMA

low suction ring Material: robust thermoplast pump suction to water level 3 mm suitable for EBARA OPTIMA, EBARA BEST ONE + GEMAT 430 NS (not suitable for BEST ONE VOX, BEST ONE MS & OPTIMA MS pumps)

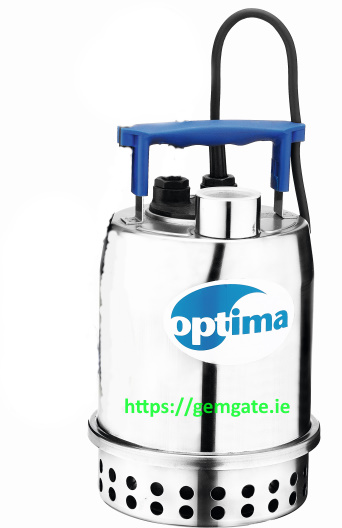

Stainless Steel Submersible Pump for clear and waste water with 10m cable (H07RN8-F) 230V|1Ph|50Hz| P1=430W| P2=250W| I=1.9A discharge outlet: 1¼“(FT) | separate non-return flap included with mechanical seal (carbon/ceramic/NBR) T(max)=50°C without automatic level control hydraulics made from Thermoplast with high abrasion resistance 10 mm solids passage H(max)=7.6 m | Q(max)=9.0 m³/h Submergence(max)=5m TÜV/GS-certified | WEEE-certified | | CE | Made in EU

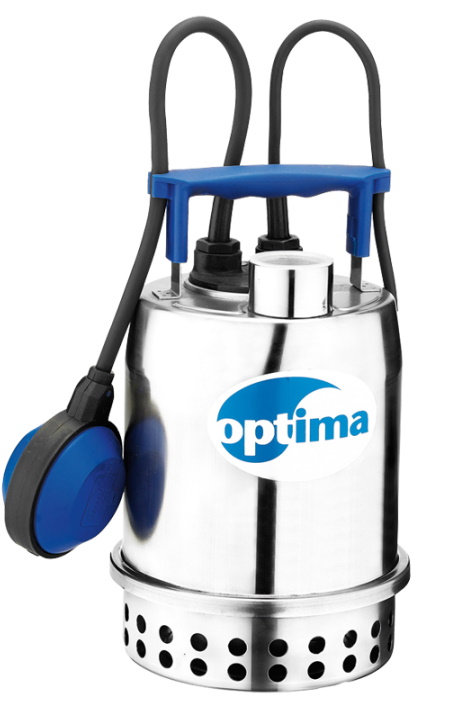

Stainless Steel Submersible Pump for clear and waste water with 10m cable (H07RN8-F) 230V|1Ph|50Hz| P1=430W| P2=250W| I=1.9A discharge outlet: 1¼“(FT) | separate non-return flap included with mechanical seal (carbon/ceramic/NBR) T(max)=50°C with automatic level control | Float-Switchhydraulics made from Thermoplast with high abrasion resistance 10 mm solids passage H(max)=7.6 m | Q(max)=9.0 m³/h Submergence(max)=5m TÜV/GS-certified | CE-certified | UKCA-certified | WEEE-certified | Made in EU    The submersible sump pump EBARA OPTIMA MA with stainless steel pump casing is equipped with a mechanical seal within an interpoised oil-chamber for a long service lifespan. The maximum volume capacity of the pump is 150 litres per minute or 9,000 litres per hour.   The vertical discharge (1¼“ - female threading) at the top of the pump with jacket-cooling also enables safe operation even when the pump is only partially submerged (e.g. draining of flooded basements).   The EBARA OPTIMA MA is fitted with a float switch for automatic level-controlled operation within a pump chamber, sump chamber or collection tank.   Typical areas of applications include: discharge of wastewater and dirty water with solids of up to 10mm wastewater treatment systems & septic tanks; discharge of treated effluent to the percolation area draining of flooded basements and garages; optional EBARA Low Suction Kit available (additional accessory) emptying of pump and sump chambers emptying of drainage chambers and surface water collection chambers discharge of greywater chambers; from washing-machines, dishwashers, showers and washhand-basins located below the sewerage level   The submersible pump EBARA OPTIMA MA is TÜV/GS-certified (German technical inspection authority) and is equipped with a 10m cable and has replaced the previous pump model EBARA BEST ZERO MA.

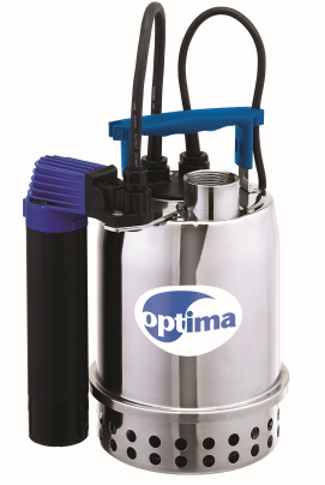

Stainless Steel Submersible Pump for clear and waste water with 5m cable (H07RN8-F) 230V|1Ph|50Hz| P1=430W| P2=250W| I=1.9A discharge outlet: 1¼“(FT) with mechanical seal (carbon/ceramic/NBR) T(max)=50°C with automatic level control - vertical magnetic float-switch for use in narrow chambers with level bottom surface (clear water) hydraulics made from Thermoplast with high abrasion resistance 10 mm solids passage H(max)=7.6 m | Q(max)=9.0 m³/h Submergence(max)=2m TÜV/GS-certified | WEEE-certified | Made in EU   The EBARA OPTIMA MS is a pump with internal float switch designed for installation in narrow chambers, where a standard external float switch would physically not be able operate.   A sump pump with internal float switch should not be used to disperse sludged-based media or discoloured water with high dirt saturation. While the pump itself is possibly less affected by this type of pumping media, deposits on the internal float-body may over time impact functionality and reliable pump operation.   In cases where a sump pump with internal float switch is nevertheless required in dirt saturated water, it is recommended to perfom regular service-checks and to provide cleaning of the internal float-body.   The pump has to operate sitting on a level bottom surface. Pumps with internal float switch should not be hung into the pump chamber.

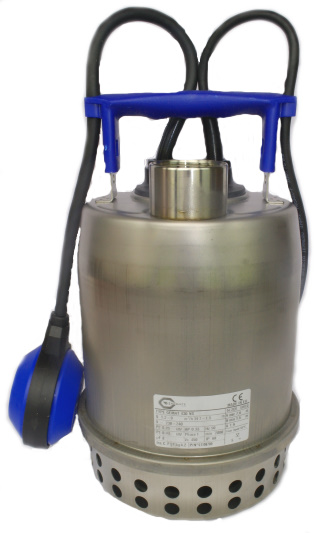

Stainless Steel Submersible Pump for clear and waste water with 10m cable (H05RN-F)230V|1Ph|50Hz| P1=430W| P2=250W| I=1.9Adischarge outlet: 1¼“(FT) | separate non-return flap includedwith mechanical seal (carbon/ceramic/NBR) T(max)=50°Cwith automatic level controlhydraulics made from Thermoplast with high abrasion resistance 10 mm solids passageH(max)=7.6 m | Q(max)=9.0 m³/hSubmergence(max)=5mCE-certified | UKCA-certified | WEEE-certified | Made in EU   The GEMAT 430 NS is a stainless-steel submersible pump with float-switch for automatic level control operation. It is used in sump pump chambers for general drainage, wastewater & sewage water handling with a solids passage of up to 10mm.   Applications include draining wells, garages, cellars or places subject to flooding. Wastewater Treatment System & Septic Tank Pump Frequently, the GEMAT 430 NS is installed as a submersible pump in domestic wastewater treatment systems and septic tanks to discharge treated effluent to the subsoil polishing filter or percolation area.   The GEMAT 430 NS submersible pump is suitable for most domestic wastewater treatment systems in Ireland including the below: (when replacing a pump, please check the technical details on the label of the existing pump and compare with the above. Assistance is available.) Bio-Crete Biodisc Biogreen (6 & 8 PE) Biokast Biotech Biocycle Chieftain (8 & 12 PE) Enviropak Klargester Oakstown BAF Domestic WWTS (6 & 8 PE) Platinum | Bord Na Mona Puraflo | Bord Na Mona Septech 2000 Streamline BAF Titan / Envirocare Tricel (selected systems only) At installations where the percolation area is not located in close proximity to the wastewater treatment system or septic tank, a larger submersible pump may be required.   A wastewater treatment system as well as a septic tank requires a functional & reliable effluent pump in the final chamber in order to continue to operate. Replacing the septic tank pump is therefore usually an urgent matter, as system backlog and potential overflowing with contamination to the surrounding ground area should be avoided.   Regular maintenance of your wastewater treatment system or septic tank & good practice ensure sufficient treatment levels in the final effluent chamber. This is also important in order to achieve a satisfactory lifespan of the submersible pump.   A general guideline to wastewater treatment systems & servicing, including replacement of the submersible effluent pump, is available for download in pdf-Format: GUIDE – Wastewater Treatment Systems Non-return flap valve - included as standard The non-return flap valve can be easily included to the pump discharge when fitting the pipe coupler. The non-return flap valve prevents water within the pipe from re-entering the pump and sump chamber after the pumping cycle has ended.  This can significantly reduce the number of pump starts, especially in smaller sump chambers with less volume.The non-return flap valve should not be included, if the discharge pipe is located in an environment subject to frost or sub-zero freezing temperatures. Quality Components Submersible pumps used numerously on a daily basis require quality components to ensure realiability and a long pump lifespan.  THE GEMAT 430 NS has robust stainless steel components, a mechanical seal (Ceramic/Carbon/NBR) as well as a glassfibre-reinforced impeller, diffuser & motor-cover in technopolymer.   The GEMAT 430 NS submersible sump pump is suitable for continuous duty operation.

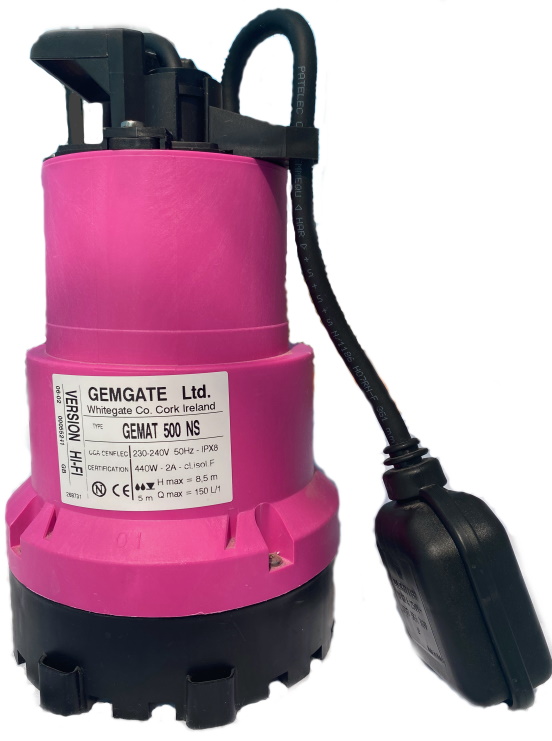

Submersible drainage pump for clear, waste and effluent water 1Ph|230V|50Hz | P1= 440W | P2=250W | I=2.0A with 10m power cable and fused 3-Pin Plug (type G; UK) | cable: H05RN-F 3G 0.75mm² Pump Body: polypropylene (PP) discharge outlet G 1“ (MT) with automatic level control (float-switch|cable:H07RN-F 3G 1.0mm²) Impeller: technopolymer (glasfibre-reinforced) 10 mm solids passage T(max) = 35°C H(max)=8.5 m | Q(max)=9.0 m³/h Submergence(max)=5m WEEE-certified | Made in EU   Pump model phased-out | only limited stock remaining | full 24-months warranty   The GEMAT 500 NS is a submersible pump in high-tech and durable polypropylene with float-switch for automatic level control operation with a volume capacity of up to 150 litres per minute.   The pump is used in sump chambers for general drainage, wastewater & sewage water handling with a solids passage of up to 10mm. Applications include draining wells, garages, cellars or places subject to flooding.   The GEMAT 500 NS submersible pump can also be installed in domestic wastewater treatment systems and septic tanks to discharge treated effluent to the subsoil polishing filter or percolation area.
