Mains Water Top-Up Sets
Automatic mains water top-up is a necessary secondary backup supply to feed mains-water to the rainwater storage tank during prolonged dry periods, ensuring continuous automatic operation of the rainwater harvesting unit.
The WISY Open Potable Water Outlet operates with a solenoid-valve triggered by a float-switch inside the tank. The Open Potable Water Outlet must be installed inside (dry conditions) and is in accordance with European, German and UK Water Regulations (air-gap) - DIN EN 1717, DIN 1989.
The Open Potable Water Outlet is available in different sizes depending on the tank size and top-up volume required for sufficient mains water backup supply.
Supplies the cistern/rainwater tank with mains-water in dry seasons demand-related mains-water feed via float-switch (additional accessory | not included) with filling function According to German standard DIN 1989/DIN EN 1717 & provides type AA air-gap compliancy with UK Water Regulations Volume @ 3bar mains-water supply: 8.64m³/h Stainless-steel tundish with laminar flow device for splash-free filling, 1" solenoid-valve with connecting cable and electric plug, connecting hose (length 75 cm) with a stainless-steel braiding, brass ball valve with dirt trap of stainless-steel (mesh size 0,65 mm) Inlet funnel: DN70 (70mm/3") for gravity-flow to tank
Supplies the cistern/rainwater tank with mains-water in dry seasons demand-related mains-water feed via float-switch (additional accessory | not included) with filling function According to German standard DIN 1989/DIN EN 1717 & provides type AA air-gap compliancy with UK Water Regulations Volume @ 3bar mains-water supply: 2.64m³/h Stainless-steel tundish with laminar flow device for splash-free filling, ½“ solenoid-valve with connecting cable and electric plug, connecting hose (length 50 cm) with a stainless-steel braiding, brass ball valve with dirt trap of stainless-steel (mesh size 0,65 mm) Inlet funnel: DN50 (50mm/2") for gravity-flow to tank
Supplies the cistern/rainwater tank with mains-water in dry seasons demand-related mains-water feed via float-switch (additional accessory | not included) with filling function According to German standard DIN 1989/DIN EN 1717 & provides type AA air-gap compliancy with UK Water Regulations Volume @ 3bar mains-water supply: 20.52m³/h Stainless-steel tundish with laminar flow device for splash-free filling, 1½" solenoid-valve with connecting cable and electric plug, connecting hose (length 75 cm) with a stainless-steel braiding, brass ball valve with dirt trap of stainless-steel (mesh size 0,65 mm) Inlet funnel: DN100 (100mm/4") for gravity-flow to tank
Supplies the cistern/rainwater tank with mains-water in dry seasons demand-related mains-water feed via float-switch (additional accessory | not included) with filling function According to German standard DIN 1989/DIN EN 1717 & provides type AA air gap compliancy with UK Water Regulations Volume @ 3bar mains-water supply: 34.92m³/h Stainless-steel tundish with laminar flow device for splash-free filling, 2" solenoid-valve with connecting cable and electric plug, connecting hose (length 100 cm) with a stainless-steel braiding, brass ball valve with dirt trap of stainless-steel (mesh size 0,65 mm) Inlet funnel: DN100 (100mm/4") for gravity-flow to tank
Supplies the cistern/rainwater tank with mains-water in dry seasons demand-related mains-water feed via float-switch (additional accessory | not included) with filling function According to German standard DIN 1989/DIN EN 1717 & provides type AA air gap compliancy with UK Water Regulations Volume @ 3bar mains-water supply: 6.48m³/h Stainless-steel tundish with laminar flow device for splash-free filling, ¾“solenoid-valve with connecting cable and electric plug, connecting hose (length 50 cm) with a stainless-steel braiding, brass ball valve with dirt trap of stainless-steel (mesh size 0,65 mm) Inlet funnel: DN50 (50mm/2") for gravity-flow to tank

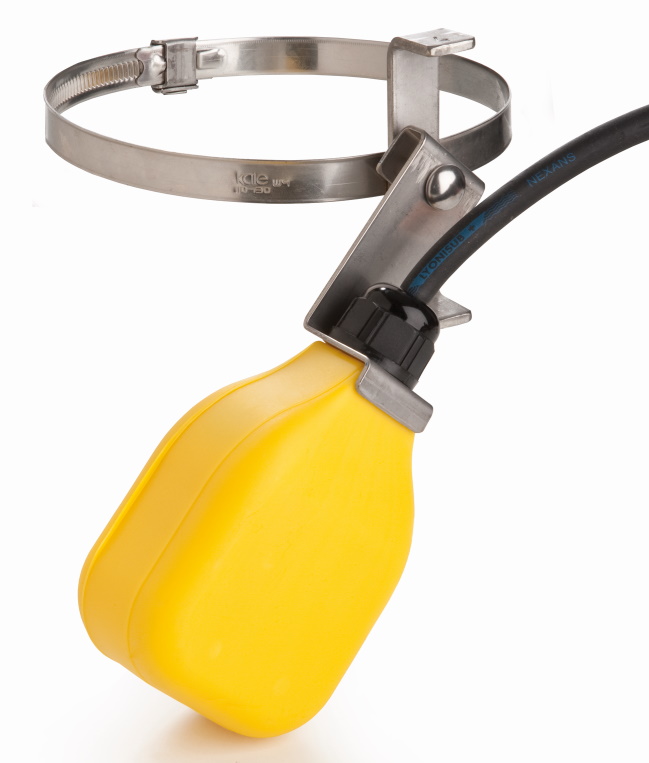

Cable material: H07RN8-F, 3x 1.0mm² Cable length: 20m | 3x core cable (L-L1-PE) with protective earth conductor (PE) 10(8) A | 250 V | IP68 Material Float: PP (non-toxic polypropylene) | Dimensions (mm): 68 x 90 x 41 | Colour: yellow T(max) = 40°C | Storage(max) = 95°CFunction: filling Switching angle: ±45° with stainless-steel clamp (Ø 100-140mm) & lever (4 cm or 9 cm switching range)Certifications: VDE, CE | Made in Germany Float Switch for Rainwater Tank mains top up Low-level Float Switch located inside a rainwater harvesting tank or header tank to activate a solenoid-valve, back-up supply, pump or low-level signal/alarm. The float switch in the downward position closes the contact between L & L1. In the upward position the contact between L & L1 is opened. Applications: - filling level-controlled filling (ON/OFF) of tanks; rainwater tank, header tank, intermediary buffer-tank low level signal/alarm of rainwater harvesting tank The float switch activates an external solenoid-valve or pump to supply water to the tank. The low level alarm or signal can also be used to activate an emergency signal or to display a status on a control panel. It can also be used to trigger a backup supply (e.g. automatic switch-over from rainwater to well-water, if rainwater tank is empty). Float switch with defined switching range Due to the stainless steel clamp and lever the float switch can be positioned at the required level inside the tank for exact defined switching levels. The clamp is suitable for a pipe diameter of 100-140 mm. Therefore, the float switch can be secured on a 4" vertical inlet pipe within the rainwater harvesting tank or on the submersible rainwater pump (e.g. EBARA Multigo pump or EBARA Idrogo pump, each with 5" diameter). In addition, the clamp allows to define a switching range of the float-switch of either 4cm or 9cm. Connection is either possible directly to solenoid-valve, pump or indirectly to the rainwater harvesting control panel. The float switch for mains water top-up is an emergency back-up in order to ensure continuous automatic supply at a rainwater harvesting system or water-supply system, in case the primary water supply source (e.g. low level inside rainwater tank) is not available. Brown = L; phase/power supply Blue = L1; to solenoid-valve, low level alarm, back-up supply or rainwater control panel Green/Yellow = PE (earth conductor) SAFETY NOTICE:due to submerged operation, a float switch with earth conductor (PE) is recommended at any installation with up to 250V. All float switches supplied by GEMGATE Limitedare equipped with an earth conductor!
Cable material: H07RN8-F, 3x 1.0mm² Cable length: 3m | 3x core cable (L-L1-PE) with protective earth conductor (PE) 10(8) A | 250 V | IP68 Material Float: PP (non-toxic polypropylene) | Dimensions (mm): 68 x 90 x 41 | Colour: yellow T(max) = 40°C | Storage(max) = 95°CFunction: emptying Switching angle: ±45° with stainless-steel clamp (Ø 100-140mm) & lever (4 cm or 9 cm switching range)Certifications: VDE, CE | Made in Germany Float Switch for Rainwater Tank mains top up Low-level Float Switch located inside a rainwater harvesting tank or header tank to activate a solenoid-valve, back-up supply, pump or low-level signal/alarm. The float switch in the downward position closes the contact between L & L1. In the upward position the contact between L & L1 is opened. Applications: - filling level-controlled filling (ON/OFF) of tanks; rainwater tank, header tank, intermediary buffer-tank low level signal/alarm of rainwater harvesting tank The float switch activates an external solenoid-valve or pump to supply water to the tank. The low level alarm or signal can also be used to activate an emergency signal or to display a status on a control panel. It can also be used to trigger a backup supply (e.g. automatic switch-over from rainwater to well-water, if rainwater tank is empty). Float switch with defined switching range Due to the stainless steel clamp and lever the float switch can be positioned at the required level inside the tank for exact defined switching levels. The clamp is suitable for a pipe diameter of 100-140 mm. Therefore, the float switch can be secured on a 4" vertical inlet pipe within the rainwater harvesting tank or on the submersible rainwater pump (e.g. EBARA Multigo pump or EBARA Idrogo pump, each with 5" diameter). In addition, the clamp allows to define a switching range of the float-switch of either 4cm or 9cm. Connection is either possible directly to solenoid-valve, pump or indirectly to the rainwater harvesting control panel. The float switch for mains water top-up is an emergency back-up in order to ensure continuous automatic supply at a rainwater harvesting system or water-supply system, in case the primary water supply source (e.g. low level inside rainwater tank) is not available. Brown = L; phase/power supply Blue = L1; to solenoid-valve, low level alarm, back-up supply or rainwater control panel Green/Yellow = PE (earth conductor) SAFETY NOTICE:due to submerged operation, a float switch with earth conductor (PE) is recommended at any installation with up to 250V. All float switches supplied by GEMGATE Limitedare equipped with an earth conductor!

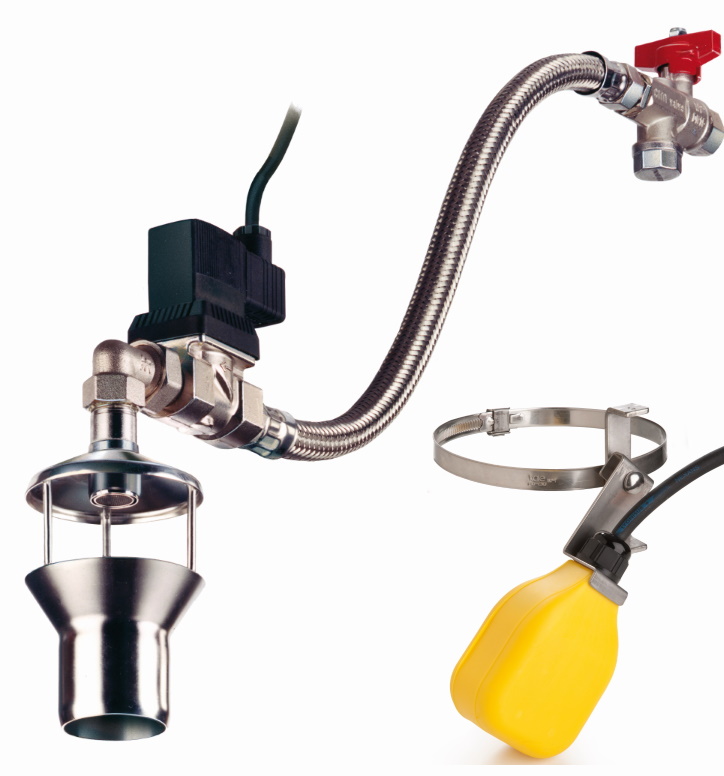

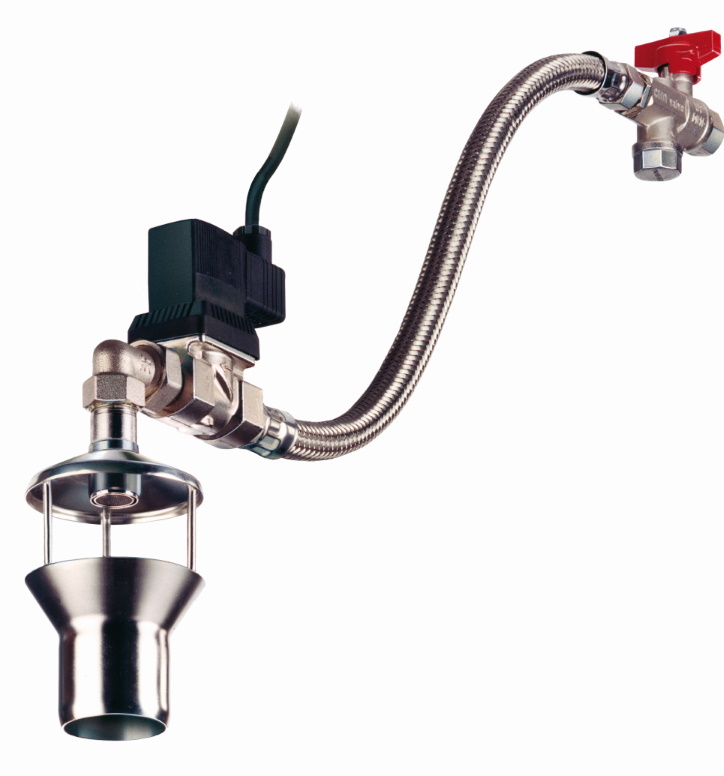

Pre-finished set automatically supplies the cistern/rainwater tank with mains-water in dry seasons Economical & demand-related feed for minimal top-up volume According to German standard DIN 1989/DIN EN 1717 & provides type AA air-gap compliancy with UK Water Regulations Volume @ 3bar mains-water supply: 2.64m³/h Mains water top-up set consists of: - ½” Open Potable Water Outlet (TW9901) Stainless-Steel Tundish with laminar flow device for splash-free filling, ½" solenoid-valve with connecting cable and electric plug, connecting hose (length 50 cm) with a stainless-steel braiding, brass ball valve with dirt trap of stainless-steel (mesh size 0,65 mm) Inlet funnel: DN50 (50mm/2") for gravity-flow to tank - Intermediate-Plug (SS0149) with 3-pin UK-adapter - Float-Switch with 20m cable with stainless-steel fastening clamp (SS1003) to switch solenoid-valve

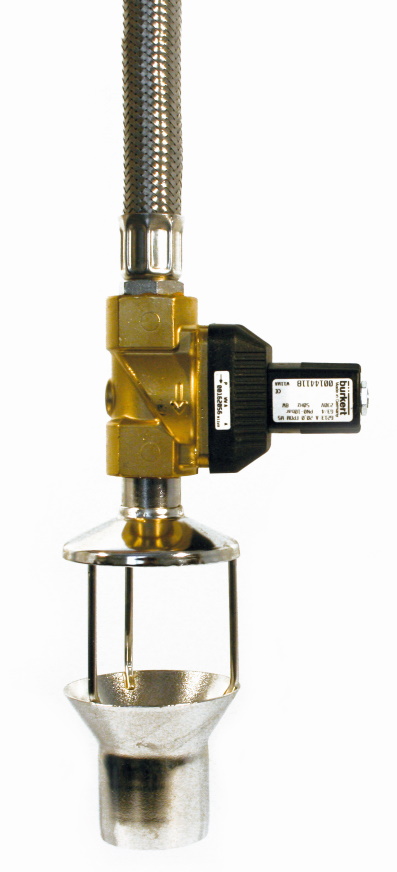

Pre-finished set automatically supplies the cistern/rainwater tank with mains-water in dry seasons Economical & demand-related feed for minimal top-up volume According to German standard DIN 1989/DIN EN 1717 & provides type AA air-gap compliancy with UK Water Regulations Volume @ 3bar mains-water supply: 8.64m³/h Mains water top-up set consists of: - 1” Open Potable Water Outlet (TW9903) Stainless-Steel Tundish with laminar flow device for splash-free filling, 1" solenoid-valve with connecting cable and electric plug, connecting hose (length 75 cm) with a stainless-steel braiding, brass ball valve with dirt trap of stainless-steel (mesh size 0,65 mm) Inlet funnel: DN70 (70mm/3") for gravity-flow to tank - Intermediate-Plug (SS0149) with 3-pin UK-adapter - Float-Switch with 20m cable & stainless-steel fastening clamp (SS1003) to switch solenoid-valve
Pre-finished set automatically supplies the cistern/rainwater tank with mains-water in dry seasons Economical & demand-related feed for minimal top-up volume According to German standard DIN 1989/DIN EN 1717 & provides type AA air-gap compliancy with UK Water Regulations Volume @ 3bar mains-water supply: 20.52m³/h Mains water top-up set consists of: - 1½” Open Potable Water Outlet (TW9905) Stainless-Steel Tundish with laminar flow device for splash-free filling, 1½" solenoid-valve with connecting cable and electric plug, connecting hose (length 75 cm) with a stainless-steel braiding, brass ball valve with dirt trap of stainless-steel (mesh size 0,65 mm) Inlet funnel: DN100 (100mm/4") for gravity-flow to tank - Intermediate-Plug (SS0149) with 3-pin UK-adapter - Float-Switch with 20m cable & stainless-steel fastening clamp (SS1003) to switch solenoid-valve
Pre-finished set automatically supplies the cistern/rainwater tank with mains-water in dry seasons Economical & demand-related feed for minimal top-up volume According to German standard DIN 1989/DIN EN 1717 & provides type AA air-gap compliancy with UK Water Regulations Volume @ 3bar mains-water supply: 34.92m³/h Mains water top-up set consists of: - 2” Open Potable Water Outlet (TW9907) Stainless-Steel Tundish with laminar flow device for splash-free filling, 2" solenoid-valve with connecting cable and electric plug, connecting hose (length 100 cm) with a stainless-steel braiding, brass ball valve with dirt trap of stainless-steel (mesh size 0,65 mm) Inlet funnel: DN100 (100mm/4") for gravity-flow to tank - Intermediate-Plug (SS0149) with 3-pin UK-adapter - Float-Switch with 20m cable & stainless-steel fastening clamp (SS1003) to switch solenoid-valve

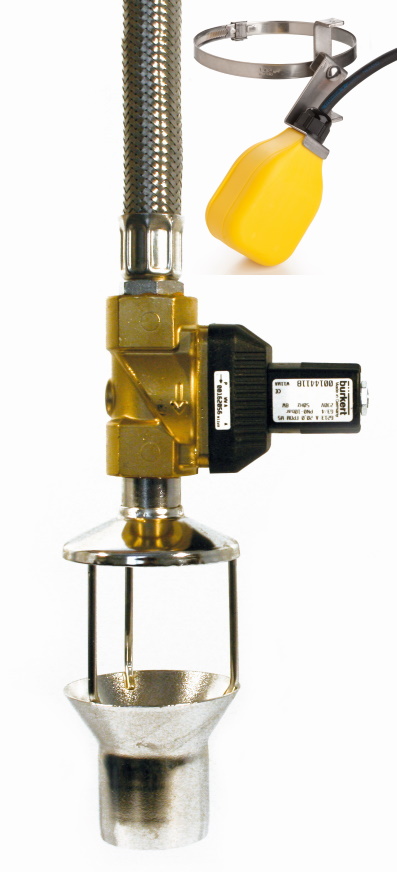

Pre-finished set automatically supplies the cistern/rainwater tank with mains-water in dry seasons Economical & demand-related feed for minimal top-up volume According to German standard DIN 1989/DIN EN 1717 & provides type AA air-gap compliancy with UK Water Regulations Volume @ 3bar mains-water supply: 6.48m³/h Mains water top-up set consists of: - ¾" Open Potable Water Outlet (TW9909) Stainless-Steel Tundish with laminar flow device for splash-free filling, ¾" solenoid-valve with connecting cable and electric plug, connecting hose (length 50 cm) with a stainless-steel braiding, brass ball valve with dirt trap of stainless-steel (mesh size 0,65 mm) Inlet funnel: DN50 (50mm/2") for gravity-flow to tank - Intermediate-Plug (SS0149) with 3-pin UK-adapter - Float-Switch with 20m cable & stainless-steel fastening clamp (SS1003) to switch solenoid-valve
