EBARA RIGHT
EBARA RIGHT submersible dirty water pumps are made of stainless steel and are equipped with double mechanical seals to ensure a long service-life and prolonged reliability.
The pumps are suitable for drainage, wastewater as well as dirty and soiled water containing solids up to 35mm.
Applications include wastewater treatment systems for final effluent pumping, drainage and sump chambers, greywater chambers from washing-machines & dish-washers as well as irrigation.
The pumps should be operated fully-submerged to ensure sufficient cooling of the motor.
Single-phase versions of EBARA Right submersible pumps are available with (MA) and without (M) automatic float-switch.
Three-phase versions of the pump range are not equipped with a float-switch. Additional pump accessories such as pump control panels and external float-switches can be included to facilitate automatic operation of three-phase pumps.
Stainless Steel Submersible Pump for clear and waste water with 10m cable 400V|3Ph|50Hz | P1= 1.2kW| P2= 0.75kW| I=2.6A discharge outlet: 1½“ (FT), T(max) = 50°C double mechanical seal (motor-side: carbon/ceramic/NBR | pump-side: SIC/SIC/NBR) without automatic level control 35 mm solids passage H(max)=10.5 m | Q(max)=18.0 m³/h Submergence(max)=7 m WEEE-certified | CE | Made in EU
Stainless Steel Submersible Pump for clear and waste water with 10m cable 230V|1Ph|50Hz| P1= 1.2kW| P2= 0.75kW| I=5.7A discharge outlet: 1½“ (FT), T(max) = 50°C double mechanical seal (motor-side: carbon/ceramic/NBR | pump-side: SIC/SIC/NBR) without automatic level control 35 mm solids passage H(max)=10.5 m | Q(max)=18.0 m³/h Submergence(max)=7 m WEEE-certified | CE | Made in EU

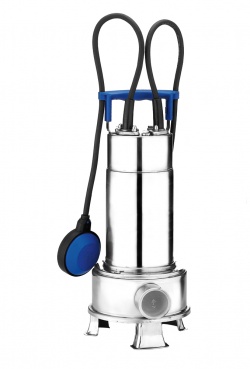

Stainless Steel Submersible Pump for clear and waste water with 10m cable 230V|1Ph|50Hz| P1= 1.20kW| P2= 0.75kW| I=5.7A discharge outlet: 1½“ (FT), T(max) = 50°C double mechanical seal (motor-side: carbon/ceramic/NBR | pump-side: SIC/SIC/NBR) with automatic level control 35 mm solids passage H(max)=10.5 m | Q(max)=18.0 m³/h Submergence(max)=7 m WEEE-certified | CE | Made in EU The EBARA RIGHT 100 MA is a complete stainless-steel submersible pump with float-switch for automatic level control operation. It is used in sump pump chambers for general drainage, wastewater & sewage water handling with a solids passage of up to 35mm. Motor-cooling is provided by the surrounding medium within the sump chamber. It is therefore recommended to operate the EBARA RIGHT 100 MA fully submerged. Operating the pump only partially submerged is fine for brief periods as the float-switch drops down to the switch OFF level. Prolonged operation only partially submerged should however be avoided. Applications include draining wells, garages, cellars or places subject to flooding. The EBARA RIGHT 100 MA is fitted with a float switch for automatic level-controlled operation within a pump chamber, sump chamber or collection tank. Typical areas of applications include: discharge of wastewater and dirty water with solids of up to 35mm emptying of pump and sump chambers emptying of drainage chambers and surface water collection chambers discharge of greywater chambers; from washing-machines, dishwashers, showers and washhand-basins located below the sewerage level Wastewater Treatment System Pump The EBARA RIGHT 100 MA is also suitable as a submersible pump in domestic wastewater treatment systems and septic tanks to discharge treated effluent to the subsoil polishing filter or percolation area. The EBARA RIGHT 100 MA submersible pump is suitable for several domestic and commercial wastewater treatment systems in Ireland where higher pumping volume is required. Some treatment systems are listed below: (when replacing a pump, please check the technical details on the label of the existing pump and compare with the above. Assistance is available.) Oakstown BAF Domestic WWTS Oakstown BAF Commercial WWTS Puraflo | Bord Na Mona Tricel Novo (selected systems only) At installations where the percolation area is not located in close proximity to the wastewater treatment system or septic tank a larger submersible pump may be required. A general guideline to wastewater treatment systems & servicing, including replacement of the submersible effluent pump, is available for download in pdf-Format: GUIDE – Wastewater Treatment Systems

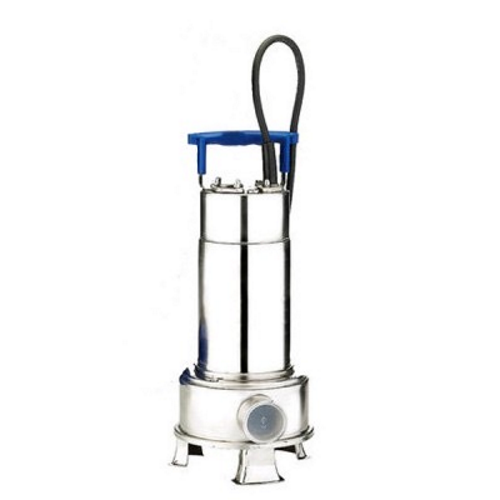

Stainless Steel Submersible Pump for clear and waste water with 10m cable 400V|3Ph|50Hz| P1= 0.95kW| P2= 0.55kW| I=2.1A discharge outlet: 1½“ (FT), T(max) = 50°C double mechanical seal (motor-side: carbon/ceramic/NBR | pump-side: SIC/SIC/NBR) without automatic level control 35 mm solids passage H(max)=8.8 m | Q(max)=14.4 m³/h Submergence(max)=7 m WEEE-certified | CE | Made in EU
Stainless Steel Submersible Pump for clear and waste water with 10m cable 230V|1Ph|50Hz| P1= 1.00kW| P2= 0.55kW| I=4.8A discharge outlet: 1½“ (FT), T(max) = 50°C double mechanical seal (motor-side: carbon/ceramic/NBR | pump-side: SIC/SIC/NBR) without automatic level control 35 mm solids passage H(max)=8.8 m | Q(max)=14.4 m³/h Submergence(max)=7 m WEEE-certified | CE | Made in EU
Stainless Steel Submersible Pump for clear and waste water with 10m cable 230V|1Ph|50Hz| P1= 1.00kW| P2= 0.55kW| I=4.8A discharge outlet: 1½“ (FT), T(max) = 50°C double mechanical seal (motor-side: carbon/ceramic/NBR | pump-side: SIC/SIC/NBR) with automatic level control 35 mm solids passage H(max)=8.8 m | Q(max)=14.4 m³/h Submergence(max)=7 m WEEE-certified | CE | Made in EU The EBARA RIGHT 75 MA is a complete stainless-steel submersible pump with float-switch for automatic level control operation. It is used in sump pump chambers for general drainage, wastewater & sewage water handling with a solids passage of up to 35mm. Motor-cooling is provided by the surrounding medium within the sump chamber. It is therefore recommended to operate the EBARA RIGHT 75 MA fully submerged. Operating the pump only partially submerged is fine for brief periods as the float-switch drops down to the switch OFF level. Prolonged operation only partially submerged should however be avoided. Applications include draining wells, garages, cellars or places subject to flooding. The EBARA RIGHT 75 MA is fitted with a float switch for automatic level-controlled operation within a pump chamber, sump chamber or collection tank. Typical areas of applications include: discharge of wastewater and dirty water with solids of up to 35mm emptying of pump and sump chambers emptying of drainage chambers and surface water collection chambers discharge of greywater chambers; from washing-machines, dishwashers, showers and washhand-basins located below the sewerage level Wastewater Treatment System Pump The EBARA RIGHT 75 MA is also suitable as a submersible pump in domestic wastewater treatment systems and septic tanks to discharge treated effluent to the subsoil polishing filter or percolation area. The EBARA RIGHT 75 MA submersible pump is suitable for several domestic and commercial wastewater treatment systems in Ireland where higher pumping volume is required. Some treatment systems are listed below: (when replacing a pump, please check the technical details on the label of the existing pump and compare with the above. Assistance is available.) Oakstown BAF Domestic WWTS Oakstown BAF Commercial WWTS Puraflo | Bord Na Mona Tricel Novo (selected systems only) At installations where the percolation area is not located in close proximity to the wastewater treatment system or septic tank a larger submersible pump may be required. A general guideline to wastewater treatment systems & servicing, including replacement of the submersible effluent pump, is available for download in pdf-Format: GUIDE – Wastewater Treatment Systems
