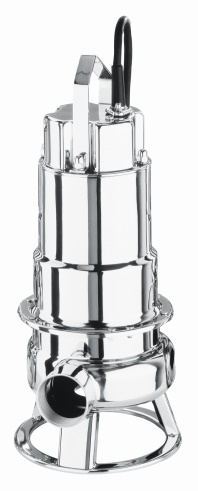

EBARA DW / DW VOX
EBARA DW/DW VOX submersible dirty water sewage pumps are manufactured entirely from a single sheet of 304 stainless steel using the patented EBARA pressing method.
The pumps are available with single channel impeller (DW) for sludge-based mediums or with open VORTEX-impeller (DW VOX) for mediums also containing long-fibred materials.
All models are equipped with double mechanical seals to ensure a long service-life and prolonged reliability to withstand continuous duty operation in demanding wastewater applications.
EBARA DW/DW VOX pumps are suitable for drainage water, wastewater as well as dirt-saturated surface-water and lightly-screened sewage water containing solids up to 50mm.
Typical applications include removal of treated effluent waste, drainage sump chambers and flood-protection pump chambers required during freak-precipitation events.
The pumps have a horizontal discharge and should therefore be operated fully-submerged to ensure sufficient cooling of the motor.

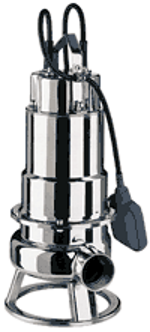

Single-phase versions of EBARA DW/DW VOX submersible pumps are available with (MA) and without (M) automatic float-switch. Three-phase versions of the pump range are not equipped with a float-switch.
Pump control panels with external float-switches can be included to facilitate automatic operation of three-phase pumps.
Additional pump accessories include flanged-discharge connection and equipment for pump chamber installation with guide-rails.
Stainless Steel Submersible Pump for clear and waste water with 10m cable 400V|3Ph|50Hz| P1=1.19kW| P2=0.75kW| I=2.1A discharge outlet: 2“ (FT) double mechanical seal (motor-side: carbon/ceramic/NBR | pump-side: SIC/SIC/NBR) without automatic level control with single-channel-impeller 50 mm solids passage H(max)=13.2m | Q(max)=36.0 m³/h Submergence(max)=7m Cable: 4x 1.5mm²+ 2x 0.5mm² (H07RN-F) (thermal contact included for external motor-protection) Overload-Protection: to be provided on-site WEEE-certified | CE | Made in EU
Stainless Steel Submersible Pump for clear and waste water with 10m cable 400V|3Ph|50Hz| P1=1.55kW| P2=1.10kW| I=2.8Adischarge outlet: 2“ (FT) double mechanical seal (motor-side: carbon/ceramic/NBR | pump-side: SIC/SIC/NBR) without automatic level control with single-channel-impeller 50 mm solids passage H(max)=15.0m | Q(max)=42.0m³/h Submergence(max)=7m Cable: 4x 1.5mm²+ 2x 0.5mm² (H07RN-F) (thermal contact included for external motor-protection) Overload-Protection: to be provided on-site WEEE-certified | CE | Made in EU
Stainless Steel Submersible Pump for clear and waste water with 10m cable 400V|3Ph|50Hz| P1=2.08kW| P2=1.50kW| I=3.6Adischarge outlet: 2“ (FT) double mechanical seal (motor-side: carbon/ceramic/NBR | pump-side: SIC/SIC/NBR) without automatic level control with single-channel-impeller 50 mm solids passage H(max)=18.1m | Q(max)=48.0m³/h Submergence(max)=7m Cable: 4x 1.5mm²+ 2x 0.5mm² (H07RN-F) (thermal contact included for external motor-protection) Overload-Protection: to be provided on-site WEEE-certified | CE | Made in EU
Stainless Steel Submersible Pump for clear and waste water with 10m cable 400V|3Ph|50Hz| P1=2.90kW| P2=2.20kW| I=5.0Adischarge outlet: 2“ (FT) double mechanical seal (motor-side: carbon/ceramic/NBR | pump-side: SIC/SIC/NBR) without automatic level control with single-channel-impeller 50 mm solids passage H(max)=21.8m | Q(max)=54.0m³/h Submergence(max)=7m Cable: 4x 1.5mm²+ 2x 0.5mm² (H07RN-F) (thermal contact included for external motor-protection) Overload-Protection: to be provided on-site WEEE-certified | CE | Made in EU
Stainless Steel Submersible Pump for clear and waste water with 10m cable 400V|3Ph|50Hz| P1=0.85kW| P2=0.55kW| I=1.5A discharge outlet: 2“ (FT) double mechanical seal (motor-side: carbon/ceramic/NBR | pump-side: SIC/SIC/NBR) without automatic level control with single-channel-impeller 50 mm solids passage H(max)=11.0m | Q(max)=30.0 m³/h Submergence(max)=7m Cable: 4x 1.5mm²+ 2x 0.5mm² (H07RN-F) (thermal contact included for external motor-protection) Overload-Protection: to be provided on-site WEEE-certified | CE | Made in EU
Stainless Steel Submersible Pump for clear and waste water with 10m cable 230V|1Ph|50Hz| P1=1.28kW| P2=0.75kW| I=5.9A discharge outlet: 2“ (FT) double mechanical seal (motor-side: carbon/ceramic/NBR | pump-side: SIC/SIC/NBR) without automatic level control with single-channel-impeller 50 mm solids passage H(max)=13.2m | Q(max)=36.0 m³/h Submergence(max)=7m Cable: 3x 1.5mm² (H07RN-F) Overload-Protection: built-in (thermal) WEEE-certified | CE | Made in EU
Stainless Steel Submersible Pump for clear and waste water with 10m cable 230V|1Ph|50Hz| P1=1.28kW| P2=0.75kW| I=5.9A discharge outlet: 2“ (FT) double mechanical seal (motor-side: carbon/ceramic/NBR | pump-side: SIC/SIC/NBR) with automatic level control with single-channel-impeller 50 mm solids passage H(max)=13.2m | Q(max)=36.0 m³/h Submergence(max)=7m Cable: 3x 1.5mm² (H07RN-F) Overload-Protection: built-in (thermal) WEEE-certified | CE | Made in EU
Stainless Steel Submersible Pump for clear and waste water with 10m cable 230V|1Ph|50Hz| P1=1.57kW| P2=1.10kW| I=7.3A discharge outlet: 2“ (FT) double mechanical seal (motor-side: carbon/ceramic/NBR | pump-side: SIC/SIC/NBR) without automatic level control with single-channel-impeller 50 mm solids passage H(max)=15.0m | Q(max)=42.0m³/h Submergence(max)=7m Cable: 3x 1.5mm² (H07RN-F) Overload-Protection: built-in (thermal) WEEE-certified | CE | Made in EU
Stainless Steel Submersible Pump for clear and waste water with 10m cable 230V|1Ph|50Hz| P1=1.57kW| P2=1.10kW| I=7.3A discharge outlet: 2“ (FT) double mechanical seal (motor-side: carbon/ceramic/NBR | pump-side: SIC/SIC/NBR) with automatic level control with single-channel-impeller 50 mm solids passage H(max)=15.0m | Q(max)=42.0m³/h Submergence(max)=7m Cable: 3x 1.5mm² (H07RN-F) Overload-Protection: built-in (thermal) WEEE-certified | CE | Made in EU
Stainless Steel Submersible Pump for clear and waste water with 10m cable 230V|1Ph|50Hz| P1=0.90kW| P2=0.55kW| I=3.9A discharge outlet: 2“ (FT) double mechanical seal (motor-side: carbon/ceramic/NBR | pump-side: SIC/SIC/NBR) without automatic level control with single-channel-impeller 50 mm solids passage H(max)=11.0m | Q(max)=30.0 m³/h Submergence(max)=7m Cable: 3x 1.0mm² (H07RN-F) WEEE-certified | CE | Made in EU
Stainless Steel Submersible Pump for clear and waste water with 10m cable 230V|1Ph|50Hz| P1=0.90kW| P2=0.55kW| I=3.9A discharge outlet: 2“ (FT) double mechanical seal (motor-side: carbon/ceramic/NBR | pump-side: SIC/SIC/NBR) with automatic level control with single-channel-impeller 50 mm solids passage H(max)=11.0m | Q(max)=30.0 m³/h Submergence(max)=7m Cable: 3x 1.0mm² (H07RN-F) Overload-Protection: built-in (thermal) WEEE-certified | CE | Made in EU
Stainless Steel Submersible Pump for clear and waste water with 10m cable 400V|3Ph|50Hz| P1=1.18kW| P2=0.75kW| I=2.1A discharge outlet: 2“ (FT) double mechanical seal (motor-side: carbon/ceramic/NBR | pump-side: SIC/SIC/NBR) without automatic level control with VORTEX-impeller 50 mm solids passage H(max)=9.0m | Q(max)=30.0 m³/h Submergence(max)=7m Cable: 4x 1.5mm²+ 2x 0.5mm² (H07RN-F) (thermal contact included for external motor-protection) Overload-Protection: to be provided on-site WEEE-certified | CE | Made in EU
Stainless Steel Submersible Pump for clear and waste water with 10m cable 400V|3Ph|50Hz| P1=1.57kW| P2=1.10kW| I=2.8Adischarge outlet: 2“ (FT) double mechanical seal (motor-side: carbon/ceramic/NBR | pump-side: SIC/SIC/NBR) without automatic level control with VORTEX-impeller 50 mm solids passage H(max)=11.4m | Q(max)=36.0m³/h Submergence(max)=7m Cable: 4x 1.5mm²+ 2x 0.5mm² (H07RN-F) (thermal contact included for external motor-protection) Overload-Protection: to be provided on-site WEEE-certified | CE | Made in EU
Stainless Steel Submersible Pump for clear and waste water with 10m cable 400V|3Ph|50Hz| P1=1.92kW| P2=1.50kW| I=3.3Adischarge outlet: 2“ (FT) double mechanical seal (motor-side: carbon/ceramic/NBR | pump-side: SIC/SIC/NBR) without automatic level control with VORTEX-impeller 50 mm solids passage H(max)=13.8m | Q(max)=42.0m³/h Submergence(max)=7m Cable: 4x 1.5mm²+ 2x 0.5mm² (H07RN-F) (thermal contact included for external motor-protection) Overload-Protection: to be provided on-site WEEE-certified | CE | Made in EU
Stainless Steel Submersible Pump for clear and waste water with 10m cable 400V|3Ph|50Hz| P1=2.40kW| P2=2.20kW| I=4.4Adischarge outlet: 2“ (FT) double mechanical seal (motor-side: carbon/ceramic/NBR | pump-side: SIC/SIC/NBR) without automatic level control with VORTEX-impeller 50 mm solids passage H(max)=17.5m | Q(max)=54.0m³/h Submergence(max)=7m Cable: 4x 1.5mm²+ 2x 0.5mm² (H07RN-F) (thermal contact included for external motor-protection) Overload-Protection: to be provided on-site WEEE-certified | CE | Made in EU
Stainless Steel Submersible Pump for clear and waste water with 10m cable 400V|3Ph|50Hz| P1=0.80kW| P2=0.55kW| I=1.4A discharge outlet: 2“ (FT) double mechanical seal (motor-side: carbon/ceramic/NBR | pump-side: SIC/SIC/NBR) without automatic level control with VORTEX-impeller 50 mm solids passage H(max)=7.2m | Q(max)=24.0 m³/h Submergence(max)=7m Cable: 4x 1.5mm²+ 2x 0.5mm² (H07RN-F) (thermal contact included for external motor-protection) Overload-Protection: to be provided on-site WEEE-certified | CE | Made in EU
Stainless Steel Submersible Pump for clear and waste water with 10m cable 230V|1Ph|50Hz| P1=1.25kW| P2=0.75kW| I=5.8A discharge outlet: 2“ (FT) double mechanical seal (motor-side: carbon/ceramic/NBR | pump-side: SIC/SIC/NBR) without automatic level control with VORTEX-impeller 50 mm solids passage H(max)=9.0m | Q(max)=30.0 m³/h Submergence(max)=7m Cable: 3x 1.5mm² (H07RN-F) Overload-Protection: built-in (thermal) WEEE-certified | CE | Made in EU
Stainless Steel Submersible Pump for clear and waste water with 10m cable 230V|1Ph|50Hz| P1=1.25kW| P2=0.75kW| I=5.8A discharge outlet: 2“ (FT) double mechanical seal (motor-side: carbon/ceramic/NBR | pump-side: SIC/SIC/NBR) with automatic level control with VORTEX-impeller 50 mm solids passage H(max)=9.0m | Q(max)=30.0 m³/h Submergence(max)=7m Cable: 3x 1.5mm² (H07RN-F) Overload-Protection: built-in (thermal) WEEE-certified | CE | Made in EU
Stainless Steel Submersible Pump for clear and waste water with 10m cable 230V|1Ph|50Hz| P1=1.58kW| P2=1.10kW| I=7.3A discharge outlet: 2“ (FT) double mechanical seal (motor-side: carbon/ceramic/NBR | pump-side: SIC/SIC/NBR) without automatic level control with VORTEX-impeller 50 mm solids passage H(max)=11.4m | Q(max)=36.0m³/h Submergence(max)=7m Cable: 3x 1.5mm² (H07RN-F) Overload-Protection: built-in (thermal) WEEE-certified | CE | Made in EU
Stainless Steel Submersible Pump for clear and waste water with 10m cable 230V|1Ph|50Hz| P1=1.58kW| P2=1.10kW| I=7.3A discharge outlet: 2“ (FT) double mechanical seal (motor-side: carbon/ceramic/NBR | pump-side: SIC/SIC/NBR) with automatic level control with VORTEX-impeller 50 mm solids passage H(max)=11.4m | Q(max)=36.0m³/h Submergence(max)=7m Cable: 3x 1.5mm² (H07RN-F) Overload-Protection: built-in (thermal) WEEE-certified | CE | Made in EU
Stainless Steel Submersible Pump for clear and waste water with 10m cable 230V|1Ph|50Hz| P1=0.88kW| P2=0.55kW| I=3.9A discharge outlet: 2“ (FT) double mechanical seal (motor-side: carbon/ceramic/NBR | pump-side: SIC/SIC/NBR) without automatic level control with VORTEX-impeller 50 mm solids passage H(max)=7.2m | Q(max)=24.0 m³/h Submergence(max)=7m Cable: 3x 1.0mm² (H07RN-F) WEEE-certified | CE | Made in EU
Stainless Steel Submersible Pump for clear and waste water with 10m cable 230V|1Ph|50Hz| P1=0.88kW| P2=0.55kW| I=3.9A discharge outlet: 2“ (FT) double mechanical seal (motor-side: carbon/ceramic/NBR | pump-side: SIC/SIC/NBR) with automatic level control with VORTEX-impeller 50 mm solids passage H(max)=7.2m | Q(max)=24.0 m³/h Submergence(max)=7m Cable: 3x 1.0mm² (H07RN-F) Overload-Protection: built-in (thermal) WEEE-certified | CE | Made in EU
