EBARA JESX-JEX

Self-priming single-impeller centrifugal pump in stainless steel (AISI 304) for water supply, pressure boosting, irrigation and rainwater harvesting400V|3Ph|50Hz| P1=0.49kW | P2=0.45kW | I=1.1 A | 2-pole Insulation class: F | Protection Degree: IP44 - low noise operation - with fan-cover and motor-support Pump Body (AISI 304) & Shaft (AISI 303) in stainless steel Impeller in technopolymer (PPE+PS - reinforced) Service-free mechanical seal (Carbon/Ceramic/NBR) O-Rings in NBR External motor-protection provided on-site Pump Bracket, Motor Support & Casing in Aluminium Ejector/Diffuser in PPE+PS (reinforced) T(max): 45°C Suction Intake: 1“ (FT) Discharge: 1" (FT) H(max) = 36.0 m | Q(max) = 2.7 m³/h Suction height (max.): 6 m CE | WEEE | Made in EU

Self-priming single-impeller centrifugal pump in stainless steel (AISI 304) for water supply, pressure boosting, irrigation and rainwater harvesting400V|3Ph|50Hz| P1=0.63kW | P2=0.60kW | I=1.3 A | 2-pole Insulation class: F | Protection Degree: IP44 - low noise operation - with fan-cover and motor-support Pump Body (AISI 304) & Shaft (AISI 303) in stainless steel Impeller in technopolymer (PPE+PS - reinforced) Service-free mechanical seal (Carbon/Ceramic/NBR) O-Rings in NBR External motor-protection provided on-site Pump Bracket, Motor Support & Casing in Aluminium Ejector/Diffuser in PPE+PS (reinforced) T(max): 45°C Suction Intake: 1“ (FT) Discharge: 1" (FT) H(max) = 42.0 m | Q(max) = 2.7 m³/h Suction height (max.): 6 m CE | WEEE | Made in EU

Self-priming single-impeller centrifugal pump in stainless steel (AISI 304) for water supply, pressure boosting, irrigation and rainwater harvesting230V|1Ph|50Hz| P1=0.54kW | P2=0.45kW | I=2.4 A | 2-pole Insulation class: F | Protection Degree: IP44 - low noise operation - with fan-cover and motor-support Pump Body (AISI 304) & Shaft (AISI 303) in stainless steel Impeller in technopolymer (PPE+PS - reinforced) Service-free mechanical seal (Carbon/Ceramic/NBR) O-Rings in NBR integrated thermal-overload Pump Bracket, Motor Support & Casing in Aluminium Ejector/Diffuser in PPE+PS (reinforced) T(max): 45°C Suction Intake: 1“ (FT) Discharge: 1" (FT) H(max) = 36.0 m | Q(max) = 2.7 m³/h Suction height (max.): 6 m CE | WEEE | Made in EU

Self-priming single-impeller centrifugal pump in stainless steel (AISI 304) for water supply, pressure boosting, irrigation and rainwater harvesting230V|1Ph|50Hz| P1=0.63kW | P2=0.60kW | I=3.0 A | 2-pole Insulation class: F | Protection Degree: IP44 - low noise operation - with fan-cover and motor-support Pump Body (AISI 304) & Shaft (AISI 303) in stainless steel Impeller in technopolymer (PPE+PS - reinforced) Service-free mechanical seal (Carbon/Ceramic/NBR) O-Rings in NBR integrated thermal-overload Pump Bracket, Motor Support & Casing in Aluminium Ejector/Diffuser in PPE+PS (reinforced) T(max): 45°C Suction Intake: 1“ (FT) Discharge: 1" (FT) H(max) = 42.0 m | Q(max) = 2.7 m³/h Suction height (max.): 6 m CE | WEEE | Made in EU

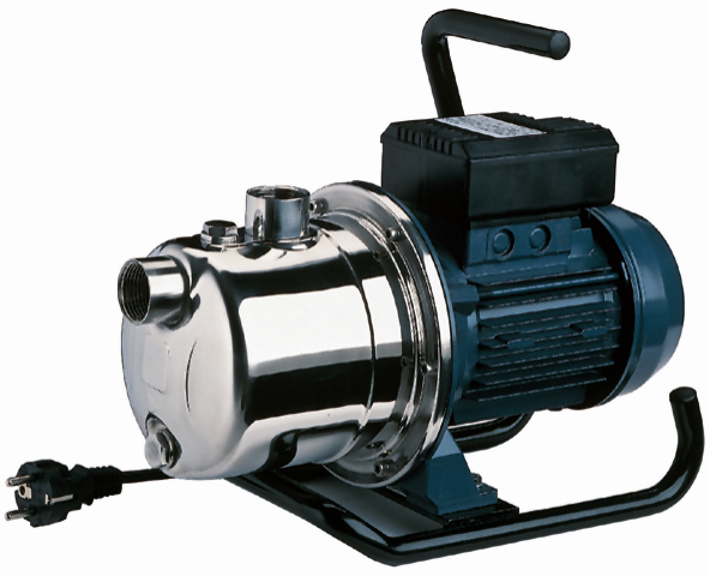

Self-priming single-impeller centrifugal pump in stainless steel (AISI 304) as a garden pump for pressurised water supply from wells or tank chamber reservoirs 230V|1Ph|50Hz| P1=0.63kW | P2=0.60kW | I=3.0 A | 2-pole Insulation class: F | Protection Degree: IP44 with motor-foot (Aluminium), handle (metal), switch & 1.5m power cable - low noise operation - with fan-cover and motor-support Pump Body (AISI 304) & Shaft (AISI 303) in stainless steel Impeller in technopolymer (PPE+PS - reinforced) Service-free mechanical seal (Carbon/Ceramic/NBR) O-Rings in NBR integrated thermal-overload Pump Bracket, Motor Support & Casing in Aluminium Ejector/Diffuser in PPE+PS (reinforced) T(max): 45°C Suction Intake: 1“ (FT) Discharge: 1" (FT) H(max) = 42.0 m | Q(max) = 2.7 m³/h Suction height (max.): 6 m CE | WEEE | Made in EU

Self-priming single-impeller centrifugal pump in stainless steel (AISI 304) for water supply, pressure boosting, irrigation and rainwater harvesting400V|3Ph|50Hz| P1=0.97kW | P2=0.60kW | I=1.9 A | 2-pole Insulation class: F | Protection Degree: IP44 - low noise operation - with fan-cover and motor-support Pump Body (AISI 304) & Shaft (AISI 303) in stainless steel Impeller in stainless steel (AISI 304) Service-free mechanical seal (Carbon/Ceramic/NBR) O-Rings in NBR External motor-protection provided on-site Pump Bracket, Motor Support & Casing in Aluminium Ejector/Diffuser in PPE+PS (reinforced) T(max): 45°C Suction Intake: 1¼“ (FT) Discharge: 1" (FT) H(max) = 41.0 m | Q(max) = 4.2 m³/h Suction height (max.): 6 m CE | WEEE | Made in EU

Self-priming single-impeller centrifugal pump in stainless steel (AISI 304) for water supply, pressure boosting, irrigation and rainwater harvesting400V|3Ph|50Hz| P1=1.15kW | P2=0.88kW | I=2.1 A | 2-pole Insulation class: F | Protection Degree: IP44 - low noise operation - with fan-cover and motor-support Pump Body (AISI 304) & Shaft (AISI 303) in stainless steel Impeller in stainless steel (AISI 304) Service-free mechanical seal (Carbon/Ceramic/NBR) O-Rings in NBR External motor-protection provided on-site Pump Bracket, Motor Support & Casing in Aluminium Ejector/Diffuser in PPE+PS (reinforced) T(max): 45°C Suction Intake: 1¼“ (FT) Discharge: 1" (FT) H(max) = 50.0 m | Q(max) = 4.2 m³/h Suction height (max.): 6 m CE | WEEE | Made in EU

Self-priming single-impeller centrifugal pump in stainless steel (AISI 304) for water supply, pressure boosting, irrigation and rainwater harvesting400V|3Ph|50Hz| P1=1.77kW | P2=1.10kW | I=3.3 A | 2-pole Insulation class: F | Protection Degree: IP44 - low noise operation - with fan-cover and motor-support Pump Body (AISI 304) & Shaft (AISI 303) in stainless steel Impeller in stainless steel (AISI 304) Service-free mechanical seal (Carbon/Ceramic/NBR) O-Rings in NBR External motor-protection provided on-site Pump Bracket, Motor Support & Casing in Aluminium Ejector/Diffuser in PPE+PS (reinforced) T(max): 45°C Suction Intake: 1¼“ (FT) Discharge: 1" (FT) H(max) = 59.0 m | Q(max) = 4.5 m³/h Suction height (max.): 6 m CE | WEEE | Made in EU

Self-priming single-impeller centrifugal pump in stainless steel (AISI 304) for water supply, pressure boosting, irrigation and rainwater harvesting230V|1Ph|50Hz| P1=1.39 kW P2=0.88 kW, I=6.7 A | 2-pole Insulation class: F | Protection Degree: IP44 - low noise operation - with fan-cover and motor-support Pump Body (AISI 304) & Shaft (AISI 303) in stainless steel Impeller in stainless steel (AISI 304) Service-free mechanical seal (Carbon/Ceramic/NBR) O-Rings in NBR integrated thermal-overload Pump Bracket, Motor Support & Casing in Aluminium Ejector/Diffuser in PPE+PS (reinforced) T(max): 45°C Suction Connection: 1¼“ (FT) Discharge Connection: 1" (FT) H(max) = 50.0 m | Q(max) = 4.2 m³/h Suction height (max.): 6 m CE-Kennzeichnung | WEEE | Made in EU   Note: the EBARA JEXM/A 120 has replaced the previously available model EBARA JEXM/A 100

Self-priming single-impeller centrifugal pump in stainless steel (AISI 304) as a garden pump for pressurised water supply from wells or tank chamber reservoirs 230V|1Ph|50Hz| P1=1.39kW | P2=0.88kW | I=6.7 A | 2-pole Insulation class: F | Protection Degree: IP44 with motor-foot (Aluminium), handle (metal), switch & 1.5m power cable - low noise operation - with fan-cover and motor-support Pump Body (AISI 304) & Shaft (AISI 303) in stainless steel Impeller in stainless steel (AISI 304) Service-free mechanical seal (Carbon/Ceramic/NBR) O-Rings in NBR integrated thermal-overload Pump Bracket, Motor Support & Casing in Aluminium Ejector/Diffuser in PPE+PS (reinforced) T(max): 45°C Suction Intake: 1¼“ (FT) Discharge: 1" (FT) H(max) = 50.0 m | Q(max) = 4.2 m³/h Suction height (max.): 6 m TÜV | CE | WEEE | Made in EU

Self-priming single-impeller centrifugal pump in stainless steel (AISI 304) for water supply, pressure boosting, irrigation and rainwater harvesting230V|1Ph|50Hz| P1=1.05kW | P2=0.60kW | I=4.7 A | 2-pole Insulation class: F | Protection Degree: IP44 - low noise operation - with fan-cover and motor-support Pump Body (AISI 304) & Shaft (AISI 303) in stainless steel Impeller in stainless steel (AISI 304) Service-free mechanical seal (Carbon/Ceramic/NBR) O-Rings in NBR integrated thermal-overload Pump Bracket, Motor Support & Casing in Aluminium Ejector/Diffuser in PPE+PS (reinforced) T(max): 45°C Suction Intake: 1¼“ (FT) Discharge: 1" (FT) H(max) = 41.0 m | Q(max) = 4.2 m³/h Suction height (max.): 6 m CE | WEEE | Made in EU

Self-priming single-impeller centrifugal pump in stainless steel (AISI 304) as a garden pump for pressurised water supply from wells or tank chamber reservoirs 230V|1Ph|50Hz| P1=1.05kW | P2=0.60kW | I=4.7 A | 2-pole Insulation class: F | Protection Degree: IP44 with motor-foot (Aluminium), handle (metal), switch & 1.5m power cable - low noise operation - with fan-cover and motor-support Pump Body (AISI 304) & Shaft (AISI 303) in stainless steel Impeller in stainless steel (AISI 304) Service-free mechanical seal (Carbon/Ceramic/NBR) O-Rings in NBR integrated thermal-overload Pump Bracket, Motor Support & Casing in Aluminium Ejector/Diffuser in PPE+PS (reinforced) T(max): 45°C Suction Intake: 1¼“ (FT) Discharge: 1" (FT) H(max) = 41.0 m | Q(max) = 4.2 m³/h Suction height (max.): 6 m TÜV | CE | WEEE | Made in EU

Self-priming single-impeller centrifugal pump in stainless steel (AISI 304) for water supply, pressure boosting, irrigation and rainwater harvesting230V|1Ph|50Hz| P1=1.70 kW P2=1.10 kW, I=7.6 A | 2-pole Insulation class: F | Protection Degree: IP44 - low noise operation - with fan-cover and motor-support Pump Body (AISI 304) & Shaft (AISI 303) in stainless steel Impeller in stainless steel (AISI 304) Service-free mechanical seal (Carbon/Ceramic/NBR) O-Rings in NBR integrated thermal-overload Pump Bracket, Motor Support & Casing in Aluminium Ejector/Diffuser in PPE+PS (reinforced) T(max): 45°C Suction Connection: 1¼“ (FT) Discharge Connection: 1" (FT) H(max) = 59.0 m | Q(max) = 4.5 m³/h Suction height (max.): 6 m CE-Kennzeichnung | WEEE | Made in EU

Self-priming single-impeller centrifugal pump in stainless steel (AISI 304) as a garden pump for pressurised water supply from wells or tank chamber reservoirs 230V|1Ph|50Hz| P1=1.70kW | P2=1.10kW | I=7.6 A | 2-pole Insulation class: F | Protection Degree: IP44 with motor-foot (Aluminium), handle (metal), switch & 1.5m power cable - low noise operation - with fan-cover and motor-support Pump Body (AISI 304) & Shaft (AISI 303) in stainless steel Impeller in stainless steel (AISI 304) Service-free mechanical seal (Carbon/Ceramic/NBR) O-Rings in NBR integrated thermal-overload Pump Bracket, Motor Support & Casing in Aluminium Ejector/Diffuser in PPE+PS (reinforced) T(max): 45°C Suction Intake: 1¼“ (FT) Discharge: 1" (FT) H(max) = 59.0 m | Q(max) = 4.5 m³/h Suction height (max.): 6 m TÜV | CE | WEEE | Made in EU
