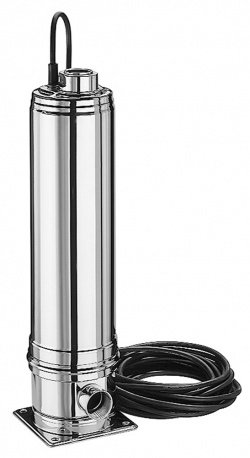

EBARA Multigo
EBARA MULTIGO vertical multistage pumps in stainless-steel are used for domestic, agricultural and commercial water supply from rainwater harvesting storage tanks & mains-water cistern tanks.
Low noise vertical centrifugal pump. The motor is cooled by the pumped liquid, whilst simultaneously reducing the noise levels as the liquid passes around the motor within a water jacket.
The double mechanical seal with interposed oil-chamber contains lubrication fluid to ensure a long lifespan and reliability.
Submersible Rainwater Pump
Suitable for booster sets, water features and irrigation systems. The Multigo pump is suitable for installations where the pump is required to operate submerged within the rainwater tank. This is also the recommended installation type.
Alternatively, the Multigo pump can also be installed dry-standing outside of the tank as a suction pump.
Pump Operation
All Multigo pumps supplied by Gemgate are fitted with 20 metres cable length as standard; cable-type HO7 RNF.
For automatic pressurised water supply and dry-run protection an additional external Pressure Switch is required.
Pump motor-protection is included when operating the pump via a Control Panel.
Stainless steel submersible rainwater pump for clean water with 20m cable 400V|3Ph|50Hz| P1= 1.18kW| P2= 0.75kW| I=2.2A Vertical multistage pump for pressurised water-supply | suitable for rainwater harvesting-systems Submerged or non-submerged operation | IP 68 Insulation-Class: F | 2-pole T(max)=40°C Pump body, casing cover in stainless steel (CrNi-Steel 1.4301) External casing & motor casing in stainless steel (CrNi-steel 1.4301) Double mechanical seal (carbon/ceramic/NBR) with interpoised oil-chamber Impeller & diffuser in technopolymer Pump intake: 1¼“ (FT) | suitable for floating suction filter Discharge outlet: 1¼“ (FT) H(max)= 60.0 m | Q(max)=4.8 m³/h Submergence (max)=17 m Suction height (max)=6 m CE-certified | WEEE-vertified | Made in EU
Stainless steel submersible rainwater pump for clean water with 20m cable 400V|3Ph|50Hz| P1= 1.33kW| P2= 0.90kW| I=2.4A Vertical multistage pump for pressurised water-supply | suitable for rainwater harvesting-systems Submerged or non-submerged operation | IP 68 Insulation-Class: F | 2-pole T(max)=40°C Pump body, casing cover in stainless steel (CrNi-Steel 1.4301) External casing & motor casing in stainless steel (CrNi-steel 1.4301) Double mechanical seal (carbon/ceramic/NBR) with interpoised oil-chamber Impeller & diffuser in technopolymer Pump intake: 1¼“ (FT) | suitable for floating suction filter Discharge outlet: 1¼“ (FT) H(max)= 72.0 m | Q(max)=4.8 m³/h Submergence(max)=17 m Suction height(max)=6 m CE-certified | WEEE-vertified | Made in EU
Stainless steel submersible rainwater pump for clean water with 20m cable 400V|3Ph|50Hz| P1= 1.55kW| P2= 1.10kW| I=3.0A Vertical multistage pump for pressurised water-supply | suitable for rainwater harvesting-systems Submerged or non-submerged operation | IP 68 Insulation-Class: F | 2-pole T(max)=40°C Pump body, casing cover in stainless steel (CrNi-Steel 1.4301) External casing & motor casing in stainless steel (CrNi-steel 1.4301) Double mechanical seal (carbon/ceramic/NBR) with interpoised oil-chamber Impeller & diffuser in technopolymer Pump intake: 1¼“ (FT) | suitable for floating suction filter Discharge outlet: 1¼“ (FT) H(max)= 84.0 m | Q(max)=4.8 m³/h Submergence(max)=17 m Suction height(max)=6 m CE-certified | WEEE-vertified | Made in EU
Stainless steel submersible rainwater pump for clean water with 20m cable 400V|3Ph|50Hz| P1= 0.95kW| P2= 0.60kW| I=1.9A Formerly: EBARA MULTIGO 40/08 Vertical multistage pump for pressurised water-supply | suitable for rainwater harvesting-systems Submerged or non-submerged operation | IP 68 Insulation-Class: F | 2-pole T(max)=40°C Pump body, casing cover in stainless steel (CrNi-Steel 1.4301) External casing & motor casing in stainless steel (CrNi-steel 1.4301) Double mechanical seal (carbon/ceramic/NBR) with interpoised oil-chamber Impeller & diffuser in technopolymer Pump intake: 1¼“ (FT) | suitable for floating suction filter Discharge outlet: 1¼“ (FT) H(max)= 48.0 m | Q(max)=4.8 m³/h Submergence (max)=17 m Suction height (max)=6 m CE-certified | WEEE-vertified | Made in EU
Stainless steel submersible rainwater pump for clean water with 20m cable 400V|3Ph|50Hz| P1= 1.22kW| P2= 0.90kW| I=2.3A Vertical multistage pump for pressurised water-supply | suitable for rainwater harvesting-systems Submerged or non-submerged operation | IP 68 Insulation-Class: F | 2-pole T(max)=40°C Pump body, casing cover in stainless steel (CrNi-Steel 1.4301) External casing & motor casing in stainless steel (CrNi-steel 1.4301) Double mechanical seal (carbon/ceramic/NBR) with interpoised oil-chamber Impeller & diffuser in technopolymer Pump intake: 1¼“ (FT) | suitable for floating suction filter Discharge outlet: 1¼“ (FT) H(max)= 49.0 m | Q(max)=7.2 m³/h Submergence(max)=17 m Suction height(max)=6 m CE-certified | WEEE-vertified | Made in EU
Stainless steel submersible rainwater pump for clean water with 20m cable 400V|3Ph|50Hz| P1= 1.52kW| P2= 1.10kW| I=3.1A Vertical multistage pump for pressurised water-supply | suitable for rainwater harvesting-systems Submerged or non-submerged operation | IP 68 Insulation-Class: F | 2-pole T(max)=40°C Pump body, casing cover in stainless steel (CrNi-Steel 1.4301) External casing & motor casing in stainless steel (CrNi-steel 1.4301) Double mechanical seal (carbon/ceramic/NBR) with interpoised oil-chamber Impeller & diffuser in technopolymer Pump intake: 1¼“ (FT) | suitable for floating suction filter Discharge outlet: 1¼“ (FT) H(max)= 62.0 m | Q(max)=7.2 m³/h Submergence(max)=17 m Suction height(max)=6 m CE-certified | WEEE-vertified | Made in EU
Stainless steel submersible rainwater pump for clean water with 20m cable 400V|3Ph|50Hz| P1= 1.90kW| P2= 1.50kW| I=3.5A Vertical multistage pump for pressurised water-supply | suitable for rainwater harvesting-systems Submerged or non-submerged operation | IP 68 Insulation-Class: F | 2-pole T(max)=40°C Pump body, casing cover in stainless steel (CrNi-Steel 1.4301) External casing & motor casing in stainless steel (CrNi-steel 1.4301) Double mechanical seal (carbon/ceramic/NBR) with interpoised oil-chamber Impeller & diffuser in technopolymer Pump intake: 1¼“ (FT) | suitable for floating suction filter Discharge outlet: 1¼“ (FT) H(max)= 74.0 m | Q(max)=7.2 m³/h Submergence(max)=17 m Suction height(max)=6 m CE-certified | WEEE-vertified | Made in EU
Stainless steel submersible rainwater pump for clean water with 20m cable 230V|1Ph|50Hz| P1= 1.25kW| P2= 0.75kW| I=5.7A Vertical multistage pump for pressurised water-supply | suitable for rainwater harvesting-systems Submerged or non-submerged operation | IP 68 Insulation-Class: F | 2-pole T(max)=40°C Pump body, casing cover in stainless steel (CrNi-Steel 1.4301) External casing & motor casing in stainless steel (CrNi-steel 1.4301) Double mechanical seal (carbon/ceramic/NBR) with interpoised oil-chamber Impeller & diffuser in technopolymer Pump intake: 1¼“ (FT) | suitable for floating suction filter Discharge outlet: 1¼“ (FT) H(max)= 60.0 m | Q(max)=4.8 m³/h Submergence(max)=17 m Suction height(max)=6 m CE-certified | WEEE-vertified | Made in EU
Stainless steel submersible rainwater pump for clean water with 20m cable 230V|1Ph|50Hz| P1= 1.42kW| P2= 0.90kW| I=6.8A Vertical multistage pump for pressurised water-supply | suitable for rainwater harvesting-systems Submerged or non-submerged operation | IP 68 Insulation-Class: F | 2-pole T(max)=40°C Pump body, casing cover in stainless steel (CrNi-Steel 1.4301) External casing & motor casing in stainless steel (CrNi-steel 1.4301) Double mechanical seal (carbon/ceramic/NBR) with interpoised oil-chamber Impeller & diffuser in technopolymer Pump intake: 1¼“ (FT) | suitable for floating suction filter Discharge outlet: 1¼“ (FT) H(max)= 72.0 m | Q(max)=4.8 m³/h Submergence(max)=17 m Suction height(max)=6 m CE-certified | WEEE-vertified | Made in EU
Stainless steel submersible rainwater pump for clean water with 20m cable 230V|1Ph|50Hz| P1= 1.60kW| P2= 1.10kW| I=7.3A Vertical multistage pump for pressurised water-supply | suitable for rainwater harvesting-systems Submerged or non-submerged operation | IP 68 Insulation-Class: F | 2-pole T(max)=40°C Pump body, casing cover in stainless steel (CrNi-Steel 1.4301) External casing & motor casing in stainless steel (CrNi-steel 1.4301) Double mechanical seal (carbon/ceramic/NBR) with interpoised oil-chamber Impeller & diffuser in technopolymer Pump intake: 1¼“ (FT) | suitable for floating suction filter Discharge outlet: 1¼“ (FT) H(max)= 84.0 m | Q(max)=4.8 m³/h Submergence(max)=17 m Suction height(max)=6 m CE-certified | WEEE-vertified | Made in EU
Stainless steel submersible rainwater pump for clean water with 20m cable 230V|1Ph|50Hz| P1= 1.00kW| P2= 0.60kW| I=4.3A Formerly: EBARA MULTIGO M40/08 Vertical multistage pump for pressurised water-supply | suitable for rainwater harvesting-systems Submerged or non-submerged operation | IP 68 Insulation-Class: F | 2-pole T(max)=40°C Pump body, casing cover in stainless steel (CrNi-Steel 1.4301) External casing & motor casing in stainless steel (CrNi-steel 1.4301) Double mechanical seal (carbon/ceramic/NBR) with interpoised oil-chamber Impeller & diffuser in technopolymer Pump intake: 1¼“ (FT) | suitable for floating suction filter Discharge outlet: 1¼“ (FT) H(max)= 48.0 m | Q(max)=4.8 m³/h Submergence(max)=17 m Suction height(max)=6 m CE-certified | WEEE-vertified | Made in EU
Stainless steel submersible rainwater pump for clean water with 20m cable 230V|1Ph|50Hz| P1= 1.33kW| P2= 0.90kW| I=6.4A Vertical multistage pump for pressurised water-supply | suitable for rainwater harvesting-systems Submerged or non-submerged operation | IP 68 Insulation-Class: F | 2-pole T(max)=40°C Pump body, casing cover in stainless steel (CrNi-Steel 1.4301) External casing & motor casing in stainless steel (CrNi-steel 1.4301) Double mechanical seal (carbon/ceramic/NBR) with interpoised oil-chamber Impeller & diffuser in technopolymer Pump intake: 1¼“ (FT) | suitable for floating suction filter Discharge outlet: 1¼“ (FT) H(max)= 49.0 m | Q(max)=7.2 m³/h Submergence(max)=17 m Suction height(max)=6 m CE-certified | WEEE-vertified | Made in EU
Stainless steel submersible rainwater pump for clean water with 20m cable 230V|1Ph|50Hz| P1= 1.62kW| P2= 1.10kW| I=7.5A Vertical multistage pump for pressurised water-supply | suitable for rainwater harvesting-systems Submerged or non-submerged operation | IP 68 Insulation-Class: F | 2-pole T(max)=40°C Pump body, casing cover in stainless steel (CrNi-Steel 1.4301) External casing & motor casing in stainless steel (CrNi-steel 1.4301) Double mechanical seal (carbon/ceramic/NBR) with interpoised oil-chamber Impeller & diffuser in technopolymer Pump intake: 1¼“ (FT) | suitable for floating suction filter Discharge outlet: 1¼“ (FT) H(max)= 62.0 m | Q(max)=7.2 m³/h Submergence(max)=17 m Suction height(max)=6 m CE-certified | WEEE-vertified | Made in EU
