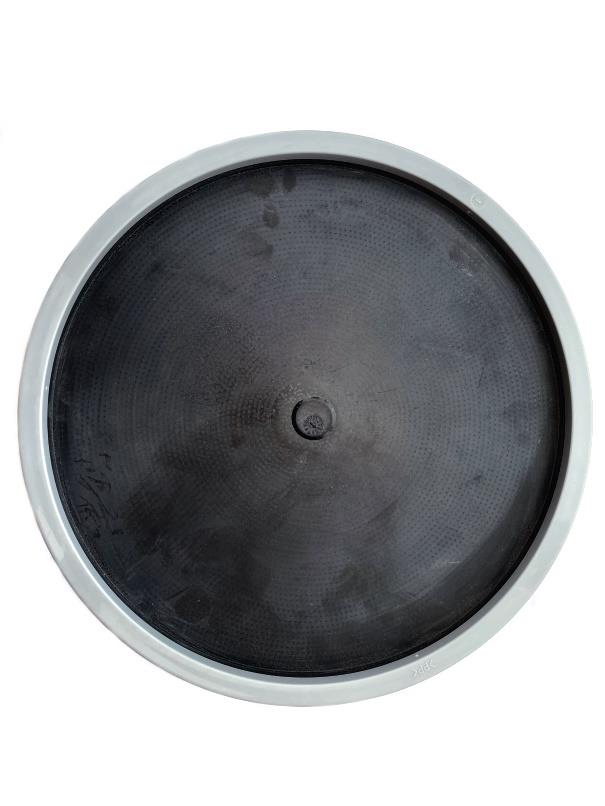

GEMDISC Disc Diffuser | 325 mm | EPDM
| Quantity | Unit price |
|---|---|
| To 9 |
€72.88
€84.87
(14.13% saved)
Net price: €59.25
VAT: €13.63
|
| To 29 |
€58.30
€84.87
(31.31% saved)
Net price: €47.40
VAT: €10.90
|
| To 99 |
€53.44
€84.87
(37.03% saved)
Net price: €43.45
VAT: €9.99
|
| From 100 |
€48.59
€84.87
(42.75% saved)
Net price: €39.50
VAT: €9.09
|
Ready for dispatch! Delivery time: 1-3 days (ROI & NI)
Product information "GEMDISC Disc Diffuser | 325 mm | EPDM"
Aeration Disc Diffuser
Membrane Material: EPDM
Material Plate & Securing Ring: PP
Upper Diameter: 325 mm (300mm aeration)
Lower Diameter: 330 mm
Perforation: 1.0 mm | fully opened: ~ 200 mbar

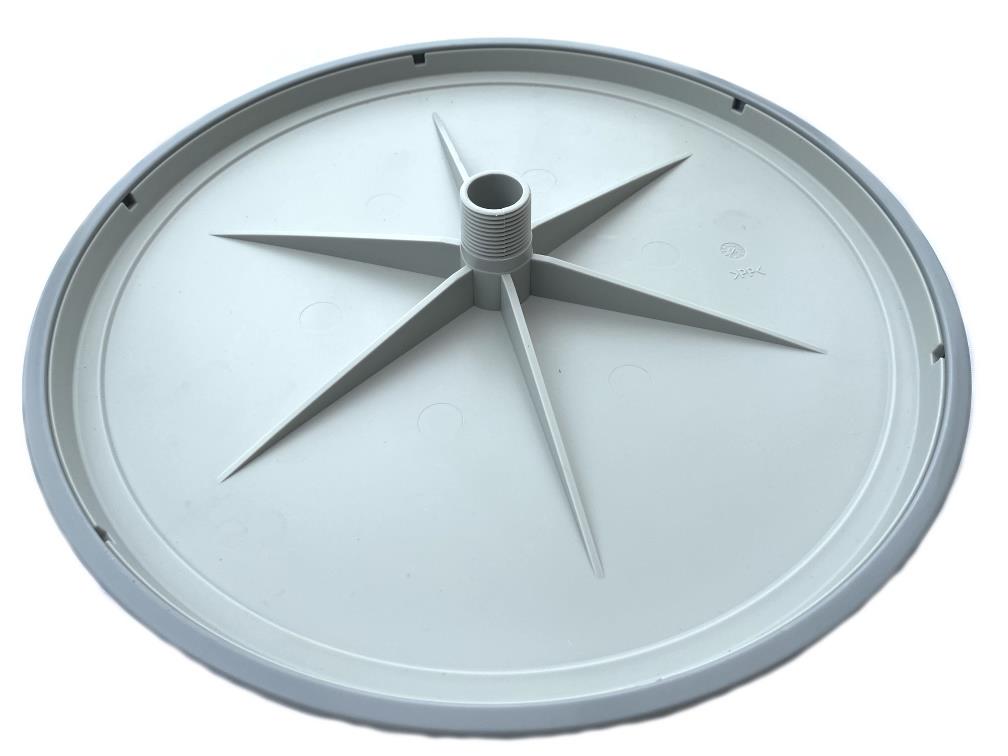

Connection: ¾“ MT
Q(min): 2 Nm³/h | (Q(max): 12 Nm³/h
Made in Germany
Fine bubble aeration with high oxygen-transfer is essential to obtain treatment level targets. It is recommended to evenly distribute GEMDISC disc diffusers within the aeration chamber (bio-reactor) for well-balanced fine bubble aeration.
The 12" disc diffuser with EPDM membrane ensures long-term reliable operation due to the valve-effect of the perforation, enabling both continuous as well as energy-efficient intermittent aeration intervals.
For effective operation and membrane longevity, air-input volume and pressure introduced into the disc diffuser should be (a) as high as is required for a good air bubble picture and (b) as low as possible.
The perforation of the membrane begins to open at approximately 40 mbar and is fully opened at ~ 200 mbar. After initial start-up (commissioning), it may be required to briefly operate at a moderately higher pressure level in order to allow the perforation over the full cross-section of the disc diffuser to open entirely.
The flexible and elastic membrane in EPDM is suitable for operation at wastewater treatment plants with predominantly domestic sewage combined with a light to moderate influx of industrial wastewater.
Areas of Application:
-
municipal sewage & wastewater treatment plants
-
decentralised remote sewage treatment systems
-
domestic wastewater treatment systems
-
aeration on landfill sites
