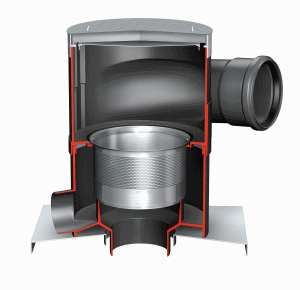

WISY Vortex Fine Filter WFF 300 | 60t | Steel Cover
€4,733.04*
Net price: €3,848.00
VAT: €885.04
Delivery free of charge! (ROI & NI)
Available in 1 day, delivery time 1-2 weeks
Product number:
WF3001
EAN:
4260465359198
Manufacturer product ID:
WF 3001
Weight:
108 kg
Product information "WISY Vortex Fine Filter WFF 300 | 60t | Steel Cover"
Rainwater Harvesting Filter in PP - (polypropylene)
Standard Version | Height: 1.035mm | extension tube/riser available (additional accessory)
for direct underground/subsoil installation (no concrete housing chamber required)
Maximum sustainable vehicle weight: 60t
Steel lid & base-plate; closing ring with certified child-safety device
Filter insert in stainless-steel with 50cm stainless-steel lifting handle
Filter mesh size 0.38 mm (380 micron)
For connection to the drainpipe in the ground
Construction of the vertically placed filter washes out large and fine dirt
Moss, leaves and insects are automatically washed into the drain
Over 95% of the rainwater is collected
Self-cleaning / low filter maintenance
Meets DIN 1072, DIN EN 752, DIN 1989
Inlet: 12"/DN 300, Outlet Tank: 8"/DN 200, Outlet Drain: 12"/DN 300
Height difference Inlet > Tank Outlet: 465mm
Area of application: for roof areas of up to 3,000 m²
Install the incoming rainwater pipe with a straight piece with a minimum length of 1.5m excluding bends
Pipe downgrade: 1%
Standard Version | Height: 1.035mm | extension tube/riser available (additional accessory)
for direct underground/subsoil installation (no concrete housing chamber required)
Maximum sustainable vehicle weight: 60t
Steel lid & base-plate; closing ring with certified child-safety device
Filter insert in stainless-steel with 50cm stainless-steel lifting handle
Filter mesh size 0.38 mm (380 micron)
For connection to the drainpipe in the ground
Construction of the vertically placed filter washes out large and fine dirt
Moss, leaves and insects are automatically washed into the drain
Over 95% of the rainwater is collected
Self-cleaning / low filter maintenance
Meets DIN 1072, DIN EN 752, DIN 1989
Inlet: 12"/DN 300, Outlet Tank: 8"/DN 200, Outlet Drain: 12"/DN 300
Height difference Inlet > Tank Outlet: 465mm
Area of application: for roof areas of up to 3,000 m²
Install the incoming rainwater pipe with a straight piece with a minimum length of 1.5m excluding bends
Pipe downgrade: 1%
